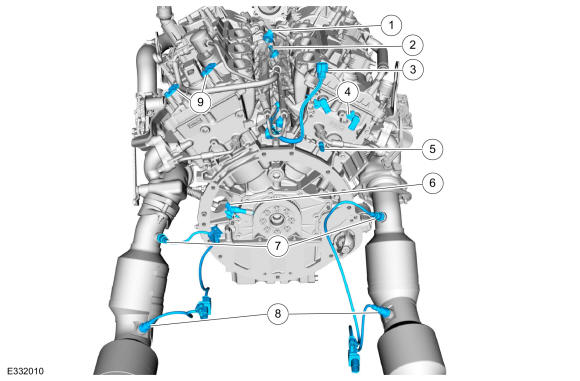

Electronic Engine Controls - Rear
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
FRP sensor |
| 2 |
FRP and temperature sensor |
| 3 |
KS |
| 4 |
Right hand CMP sensors |
| 5 |
CHT sensor |
| 6 |
CKP sensor |
| 7 |
HO2S |
| 8 |
Catalyst monitor sensors |
| 9 |
Left hand CMP sensors |
