Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Variable Camshaft Timing (VCT) Bank 1 Solenoid 1 and Bank 2 Solenoid 2
- Remove the RH valve cover. Refer to: Valve Cover RH .

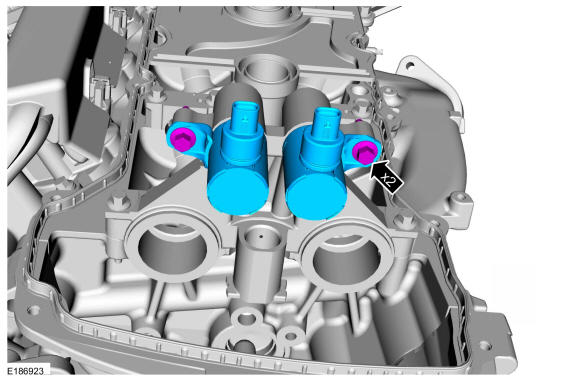

- Remove the bolts and the VCT oil control solenoids.
Torque
:Stage 1: 71 lb.in (8 Nm)
Stage 2: 20°
Variable Camshaft Timing (VCT) Bank 2 Solenoid 1 and Bank 2 Solenoid 2
- Remove the LH valve cover. Refer to: Valve Cover LH .

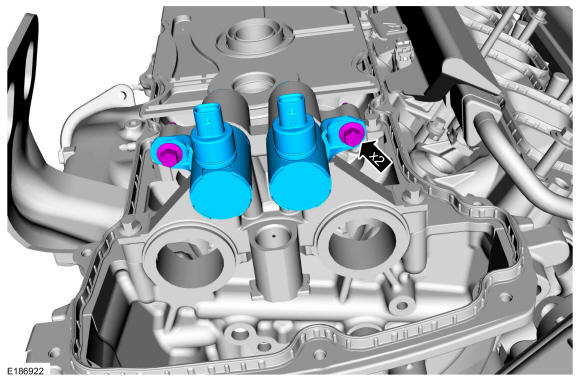

- Remove the bolts and the VCT oil control solenoids.
Torque
:Stage 1: 71 lb.in (8 Nm)
Stage 2: 20°
