Manifold Absolute Pressure (MAP) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

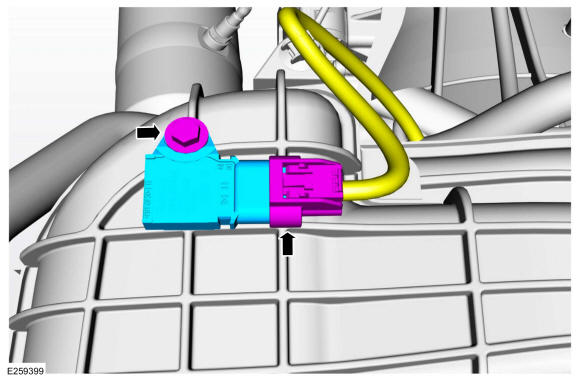

Disconnect the electrical connector and remove the MAP sensor.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
