Fuel Rail Pressure and Temperature Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE
- Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
- Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE

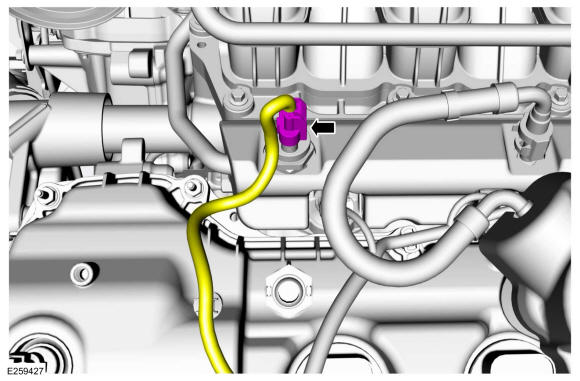

- Disconnect the electrical connector.

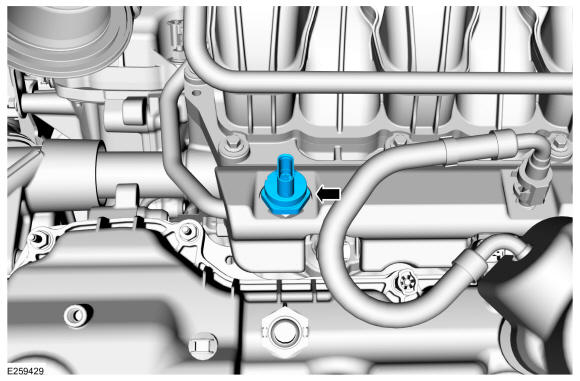

- Remove the FRP and temperature sensor.
Torque
:Stage 1: 44 lb.in (5 Nm)
Stage 2: 25°
