Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
- Remove the lower intake manifold. Refer to: Lower Intake Manifold .

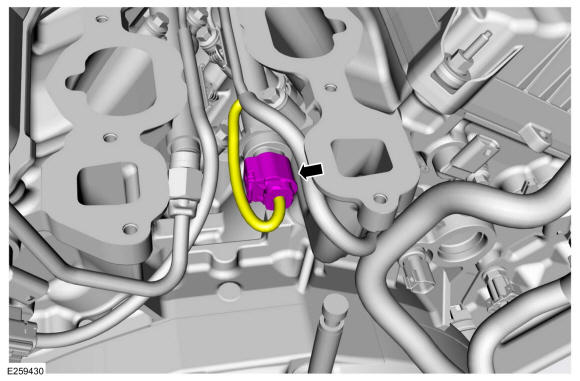

- Disconnect the FRP sensor.

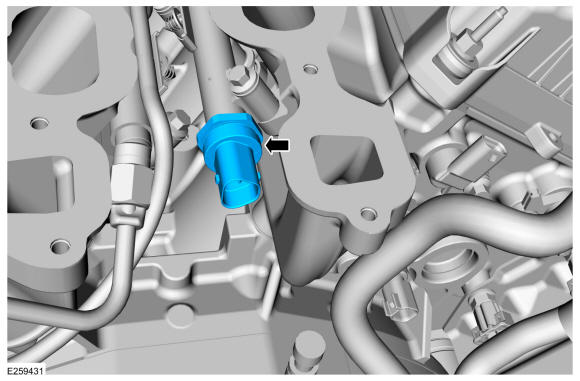

- Remove the FRP sensor.
Torque
: 24 lb.ft (32.5 Nm)
