Engine Oil Pressure (EOP) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

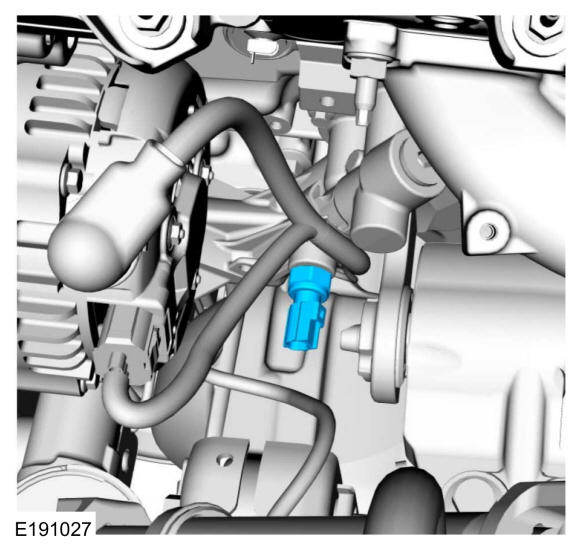

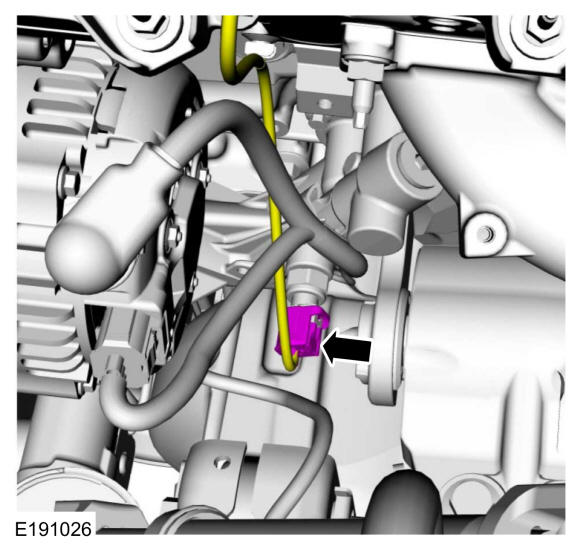

- Disconnect the oil pressure sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- Remove the oil pressure sensor.
Torque
: 133 lb.in (15 Nm)
 Courtesy of FORD MOTOR COMPANY
|
