Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the RH fender splash shield. Refer to: FENDER SPLASH SHIELD

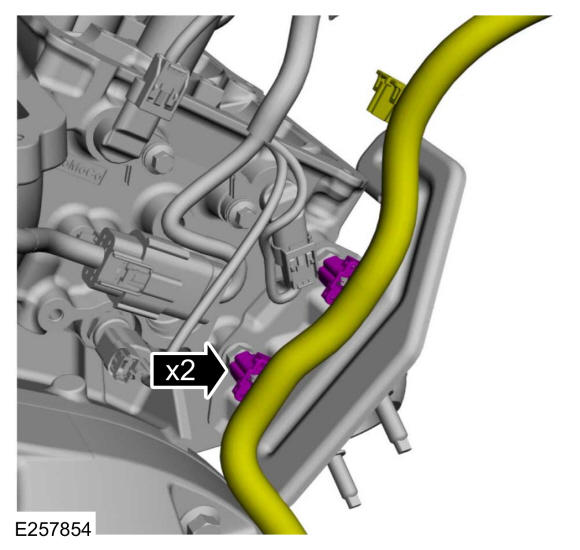

- Disconnect the transmission wiring harness retainers from the stud bolts.

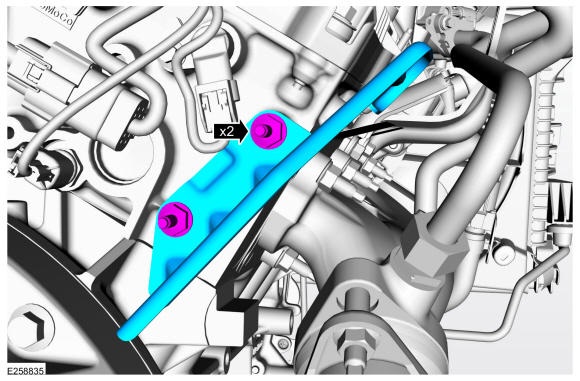

- Remove the stud bolts and the heat shield.
Torque
: 89 lb.in (10 Nm)

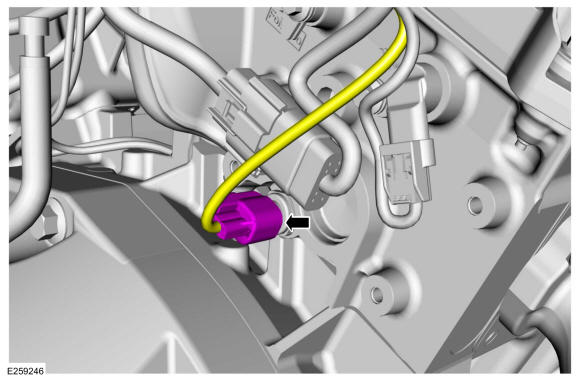

- Disconnect the CHT electrical connector.
-
NOTE: Do not reuse the CHT sensor, install a new sensor.

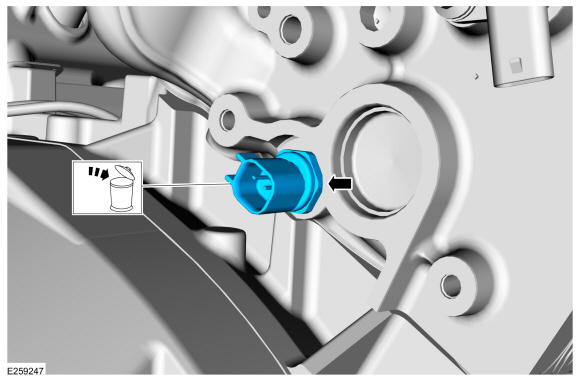

Remove and discard the CHT sensor.
Torque
: 97 lb.in (11 Nm)
