Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Camshaft Position (CMP) Bank 1 Sensor 1 and Bank 1 sensor 2

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH fender splash shield. Refer to: FENDER SPLASH SHIELD .

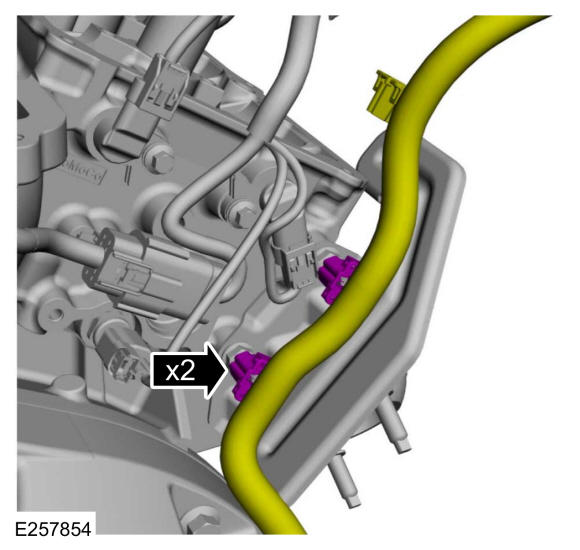

Disconnect the transmission wiring harness retainers from the stud bolts.

Courtesy of FORD MOTOR COMPANY

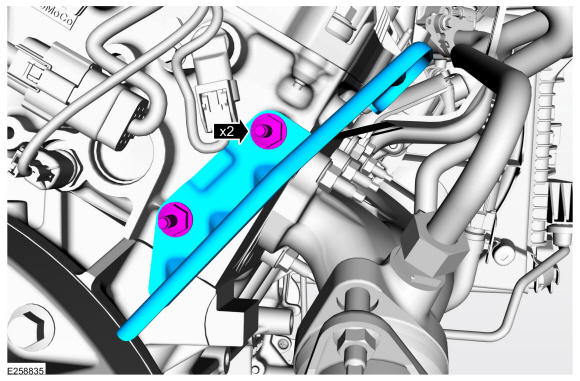

Remove the stud bolts and the heat shield.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

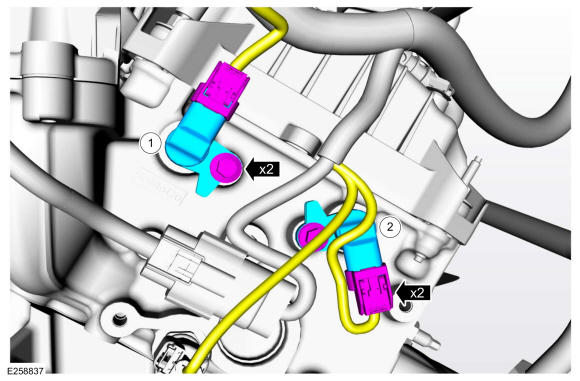

- Disconnect the CMP sensor electrical connector and remove the retainer and the CMP sensor.
  Torque

  : 89 lb.in (10 Nm)
- Disconnect the CMP sensor electrical connector and remove the retainer and the CMP sensor.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

Camshaft Position (CMP) Bank 2 Sensor 1 and Bank 2 sensor 2
Remove the LH fender splash shield. Refer to: FENDER SPLASH SHIELD
- Disconnect the CMP sensor electrical connector and remove the retainer and the CMP sensor.
  Torque

  : 89 lb.in (10 Nm)

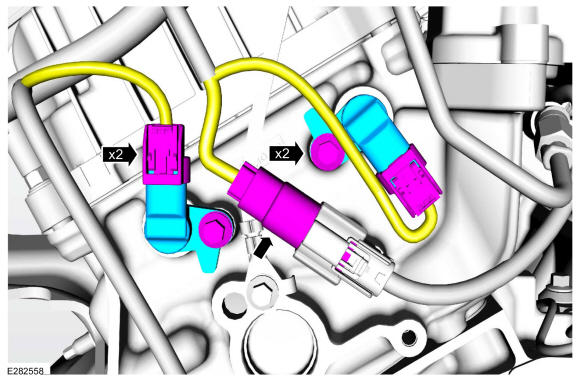

- Disconnect the fuel rail electrical connector and position aside. Disconnect the CMP sensor electrical connector and remove the retainer and the CMP sensor.
  Torque

  : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
