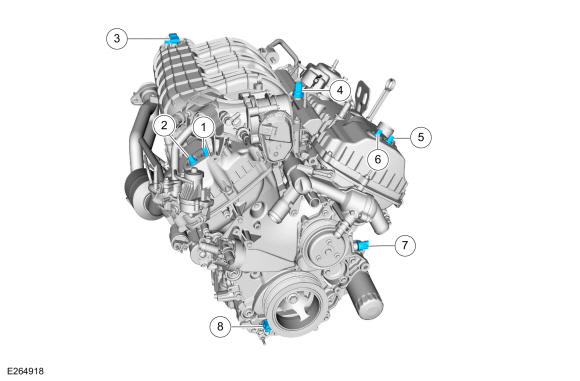

Electronic Engine Controls- Front
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RH intake VCT oil control solenoid |
| 2 |
RH exhaust VCT oil control solenoid |
| 3 |
MAP sensor |
| 4 |
FRP and Temperature sensor. |
| 5 |
LH exhaust VCT oil control solenoid |
| 6 |
LH intake VCT oil control solenoid |
| 7 |
EOP sensor |
| 8 |
Oil Pressure Control Solenoid |
