Powertrain Control Module (PCM): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Removal steps in this procedure may contain installation details.
    NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming .

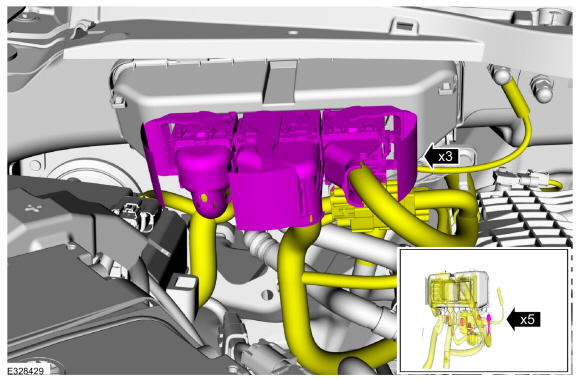

  2. Disconnect the PCM electrical connectors. Release the harness retainers from the lower PCM cover to position aside the harnesses.
    GFD558418Courtesy of FORD MOTOR COMPANY

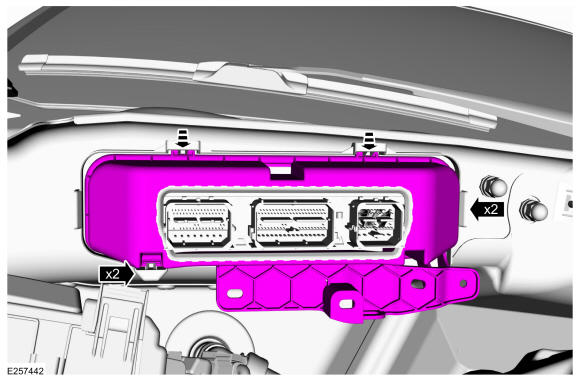

  3. Release the retaining clips and remove the PCM cover.
    GFD558419Courtesy of FORD MOTOR COMPANY

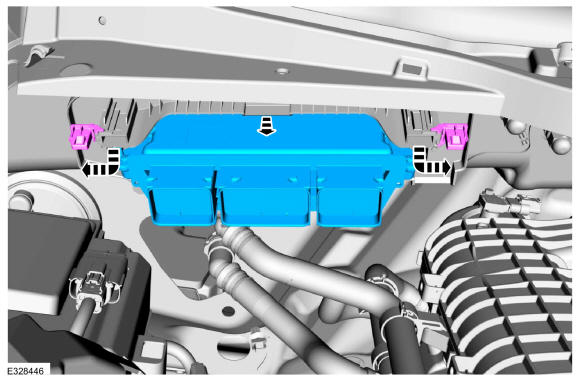

  4. Release the retaining clips and remove the PCM.
GFD558420Courtesy of FORD MOTOR COMPANY
