Mass Air Flow (MAF) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

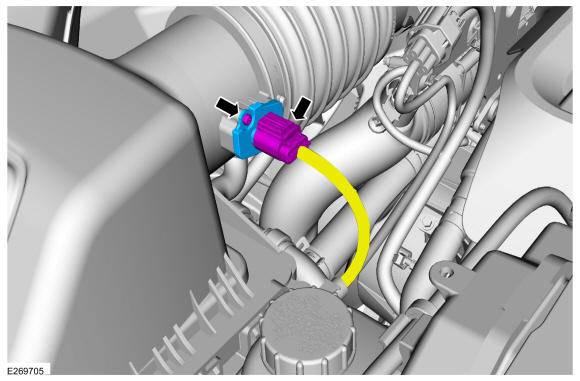

  1. Disconnect the MAF electrical connector. Remove the screws and the MAF sensor.

    Torque

    : 18 lb.in (2 Nm)

GFD558405Courtesy of FORD MOTOR COMPANY
