Fuel Pressure and Temperature Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE:
Removal steps in this procedure may contain installation details.
Remove engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|

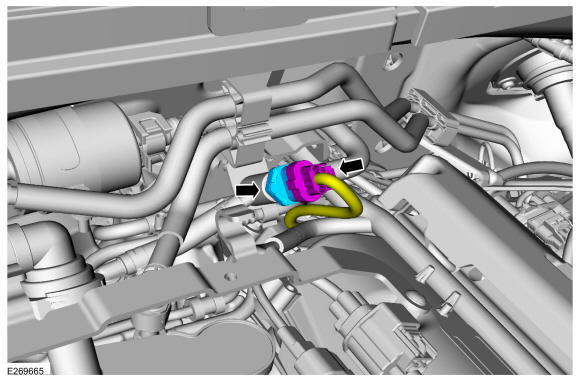

- Disconnect the electrical connector and remove the fuel pressure and temperature sensor.
Torque
: 177 lb.in (20 Nm)
 Courtesy of FORD MOTOR COMPANY
|
