Exhaust Pressure Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the LH fender splash shield. Refer to: Fender Splash Shield .

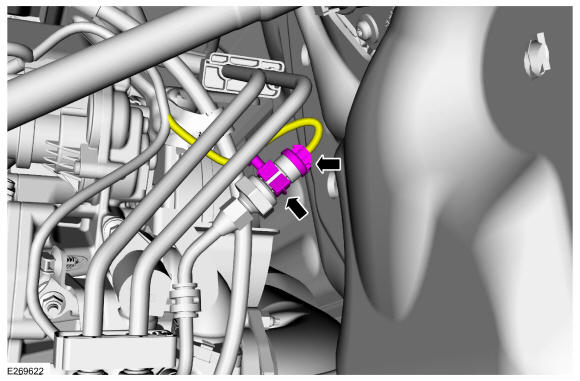

Disconnect the electrical connector and harness clip.

Courtesy of FORD MOTOR COMPANY

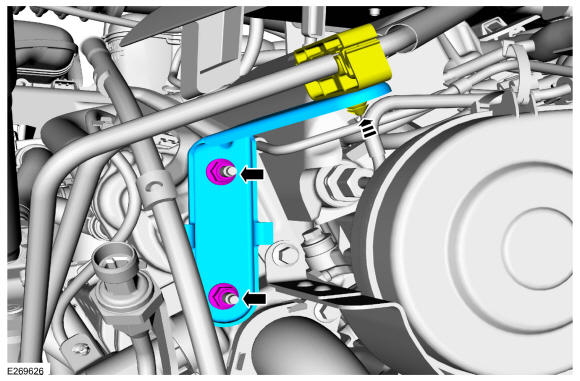

Remove the nuts and the fuel tube support bracket.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

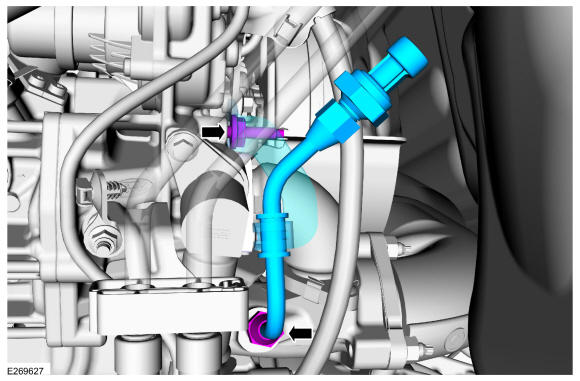

NOTE: When installing the EP (exhaust pressure) sensor assembly, hand start the tube nut then install the stud bolt.

Remove the stud bolt. Remove the tube nut and EP (exhaust pressure) sensor assembly.

Torque

: M6 stud bolt: 89 lb.in (10 Nm)

Tube nut: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
