Engine Oil Pressure (EOP) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
NOTE: The EOP sensor has and adapter that must be installed separate.

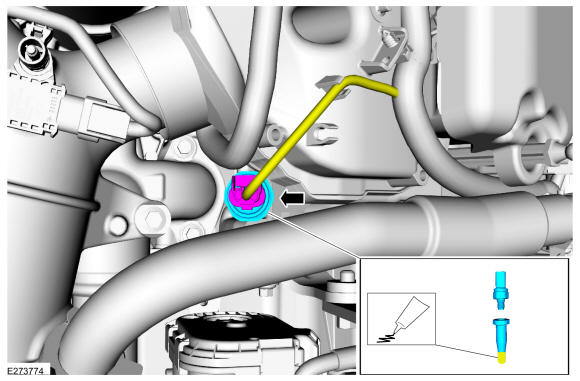

Disconnect the electrical connector and remove the EOP sensor.

Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
