Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|

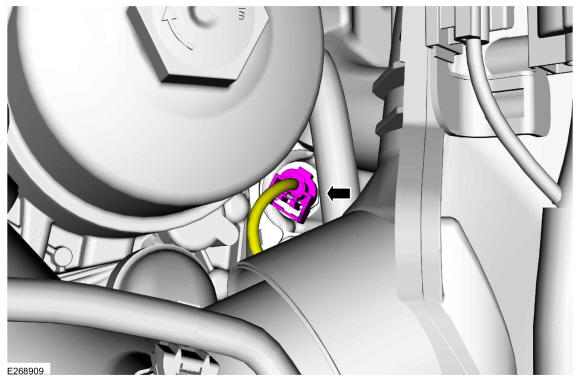

- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
-
NOTE:
Do not reuse the CHT sensor, install a new sensor.

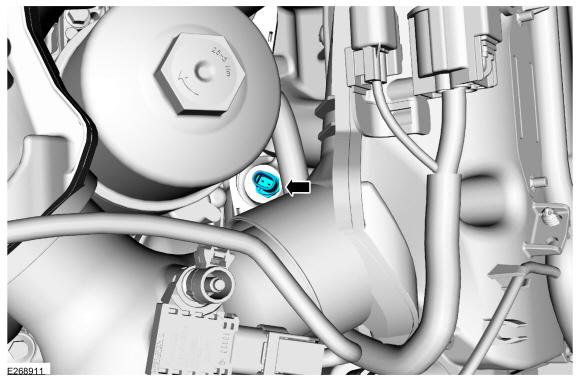

Remove and discard the CHT sensor.
Torque
: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
