Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the LH fender splash shield. Refer to: Fender Splash Shield .

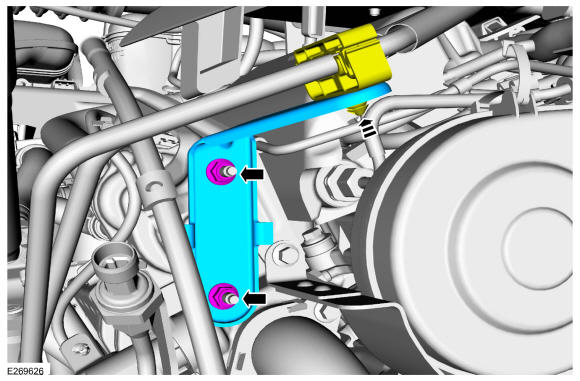

Remove the nuts and the fuel tube support bracket.
Torque

: Nuts: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

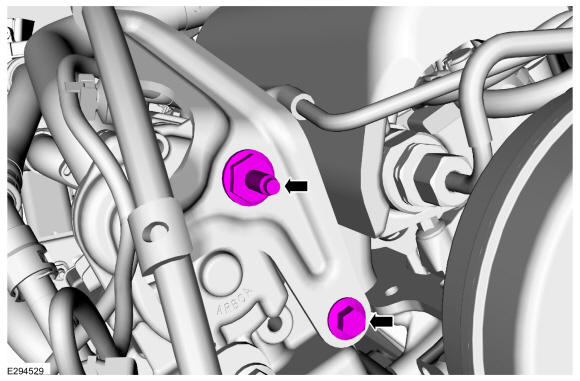

Remove the bolt and stud bolt.
Torque

: Bolt: 89 lb.in (10 Nm)

Stud bolt: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the O-ring seal with clean engine oil prior to installing the oil level indicator tube.

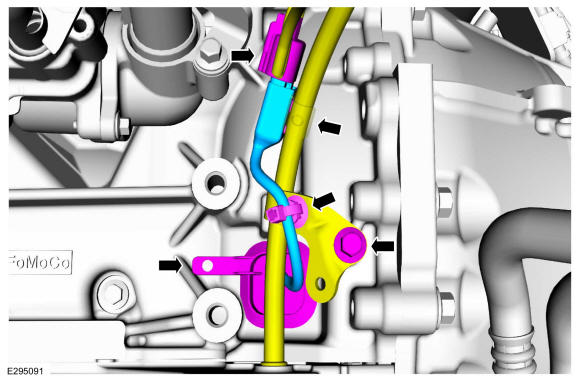

Disconnect the CKP sensor electrical connector and the harness pushpins. Remove the bolt and the CKP sensor cover. Position aside the oil level indicator tube.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

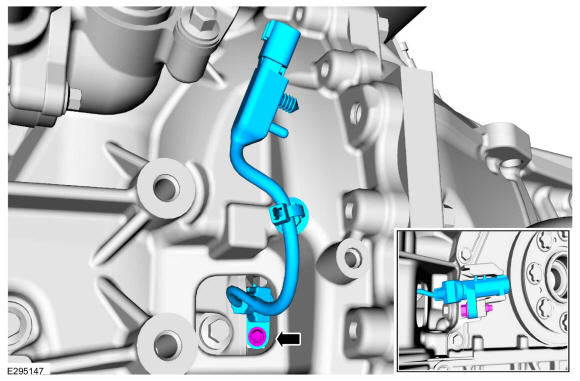

Remove the bolt and the CKP sensor.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
