Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the engine appearance cover.
- Remove the air cleaner. Refer to: Air Cleaner .

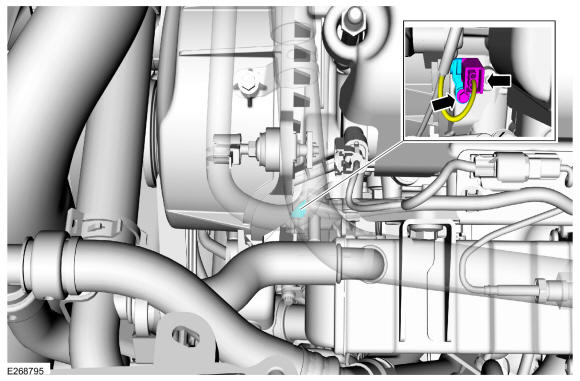

- Disconnect the electrical connector and remove the CMP sensor.
Torque
: 89 lb.in (10 Nm)
