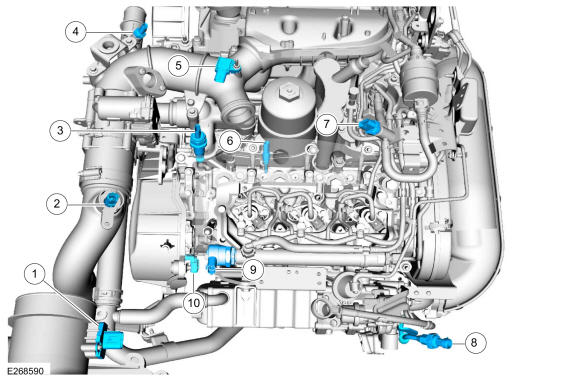

Electronic Engine Controls - Top
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
MAF sensor |
| 2 |
CAC temperature sensor |
| 3 |
EOP sensor |
| 4 |
ECT sensor |
| 5 |
MAP sensor |
| 6 |
CHT sensor |
| 7 |
Fuel Pressure and Temperature sensor |
| 8 |
Exhaust Pressure sensor |
| 9 |
Fuel Pressure Control Valve |
| 10 |
CMP sensor |
