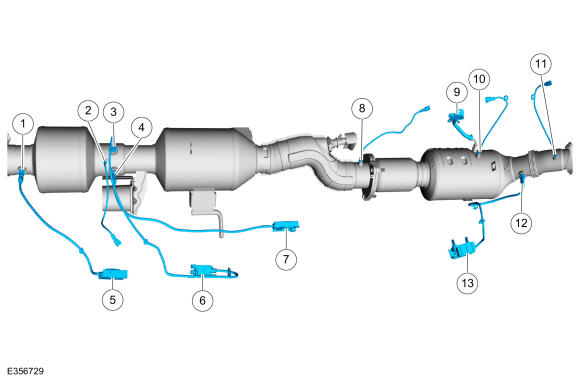

Electronic Engine Controls - Exhaust System
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | NOX sensor 13 |
| 2 | Exhaust Gas Temperature sensor 14 |
| 3 | Patriculate Matter sensor 11 |
| 4 | NOX sensor 12 |
| 5 | NOX13 |
| 6 | Particulate Matter sensor Module 11 |
| 7 | NOX12 |
| 8 | Exhaust Gas Temperature sensor 13 |
| 9 | Diesel Particulate Filter (DPF) Differential Pressure sensor |
| 10 | Exhaust Gas Temperature sensor 12 |
| 11 | Exhaust Gas Temperature sensor 11 |
| 12 | NOX (oxides of nitrogen) sensor 11 |
| 13 | NOX11 |
