Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

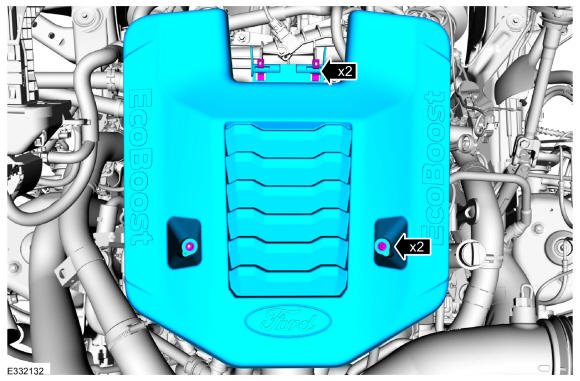

- Remove the nuts and the engine appearance cover.
Torque: 42 lb.in (4.8 Nm)

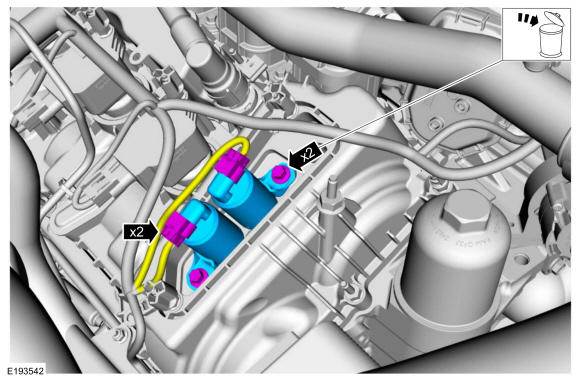

- Disconnect the electrical connectors, remove the bolts and the RHVCT oil control solenoids.
Torque: 97 lb.in (11 Nm)
LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the nuts and the engine appearance cover.
Torque: 42 lb.in (4.8 Nm)

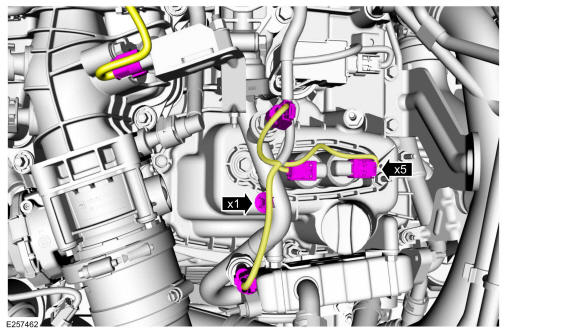

- Disconnect the electrical connectors and pushpin retainer.
- Remove the hose clamps, nut and the EGR differential pressure sensor.

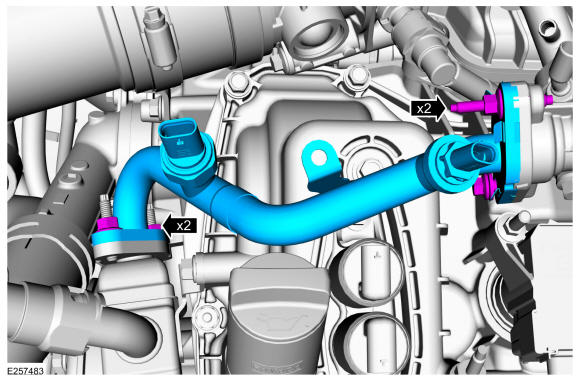

- Remove the retainers and the EGR intermediate tube.
Torque: 89 lb.in (10 Nm)

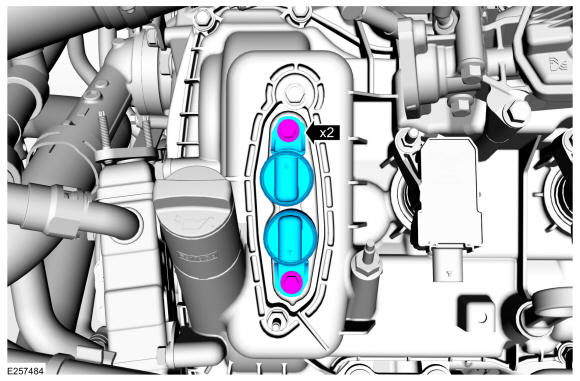

- Remove the bolts and the LHVCT oil control solenoid.
Torque: 97 lb.in (11 Nm)
