Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

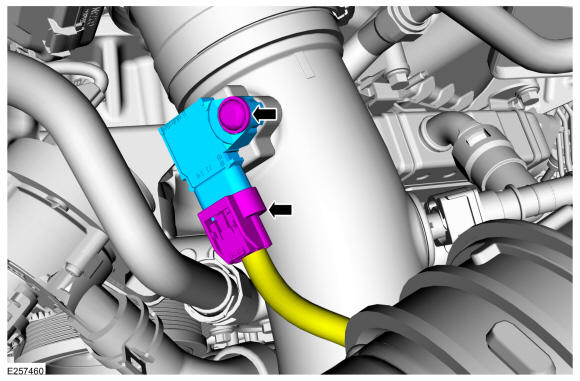

- Disconnect the electrical connector, remove the retainer and the turbocharger boost pressure (TCBP) and charge air cooler temperature (CACT) sensor.
Torque: 27 lb.in (3 Nm)
 Courtesy of FORD MOTOR COMPANY
|
