Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH port injection fuel rail. Refer to: Port Injection Fuel Rail LH .

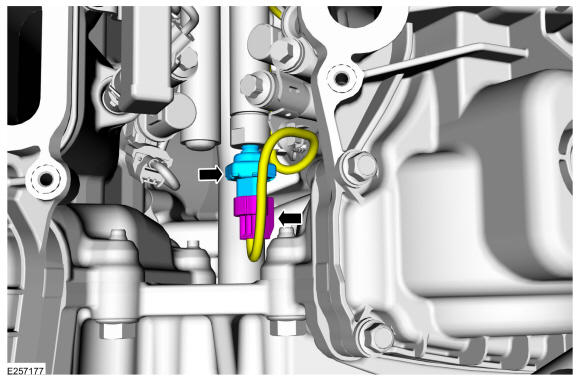

- Disconnect the electrical connector and remove the FRP sensor.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)
Torque: 22 lb.ft (30 Nm)
