Cylinder Head Temperature 2 (CHT2) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

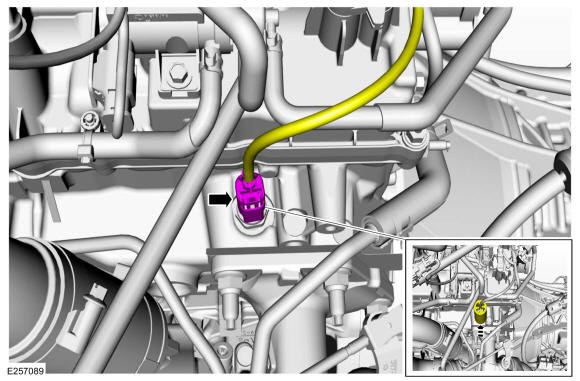

- Disconnect the CHT2 sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
-
NOTE:
Do not reuse the CHT2 sensor, install a new sensor.

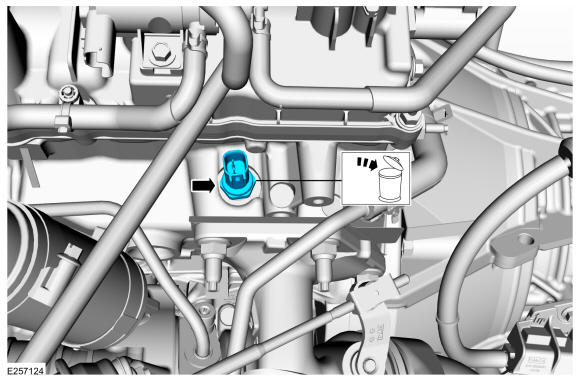

Remove and discard the CHT2 sensor.
Torque: 97 lb.in (11 Nm)
 Courtesy of FORD MOTOR COMPANY
|
