Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

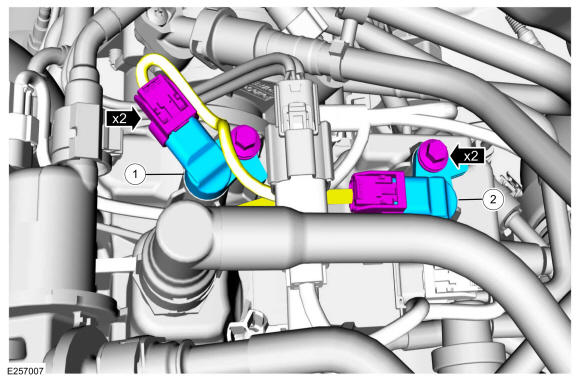

RH (right-hand) Camshaft Position (CMP) Sensors
-
- Disconnect the exhaust CMP sensor electrical connector, remove the retainer and the CMP sensor.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)
Torque: 97 lb.in (11 Nm)
- Disconnect the intake CMP sensor electrical connector, remove the retainer and the CMP sensor.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)
Torque: 97 lb.in (11 Nm)

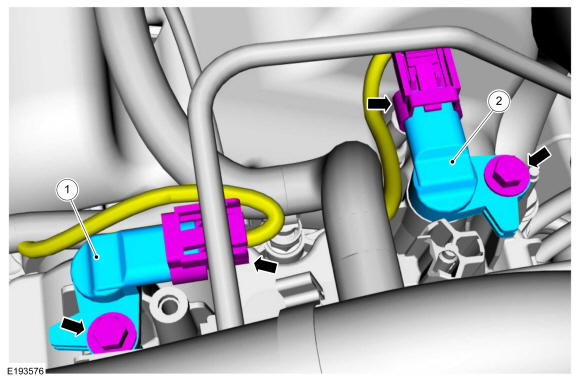

LH (left-hand) Camshaft Position (CMP) Sensors
- Disconnect the exhaust CMP sensor electrical connector, remove the retainer and the CMP sensor.
-
- Disconnect the intake CMP sensor electrical connector, remove the retainer and the CMP sensor.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)
Torque: 97 lb.in (11 Nm)
- Disconnect the exhaust CMP sensor electrical connector, remove the retainer and the CMP sensor.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)
Torque: 97 lb.in (11 Nm)
- Disconnect the intake CMP sensor electrical connector, remove the retainer and the CMP sensor.
