Electronic Engine Controls- Upper
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

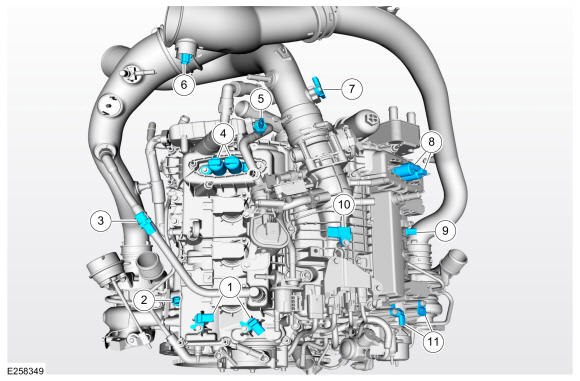

| Item | Description |
|---|---|
| 1 | Left hand CMP sensors |
| 2 | CHT (CHT2) sensor |
| 3 | Crankcase Pressure Sensor |
| 4 | Left hand VCT oil control solenoids |
| 5 | Exhaust Pressure sensor |
| 6 | IAT sensor |
| 7 | Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor |
| 8 | Right hand VCT oil control solenoids |
| 9 | EOP sensor |
| 10 | MAP sensor |
| 11 | Right hand CMP sensors |
