Electronic Engine Controls- Top

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

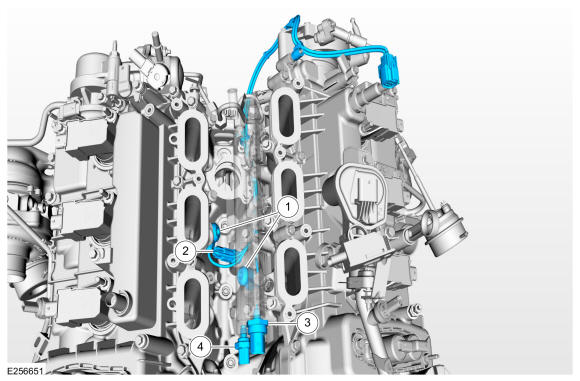

GFD558142Courtesy of FORD MOTOR COMPANY
Item Description
1 KS
2 ECT sensor
3 Fuel Rail Pressure and Temperature sensor
4 FRP sensor
