Instrument Panel Cluster (IPC) Lens: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .

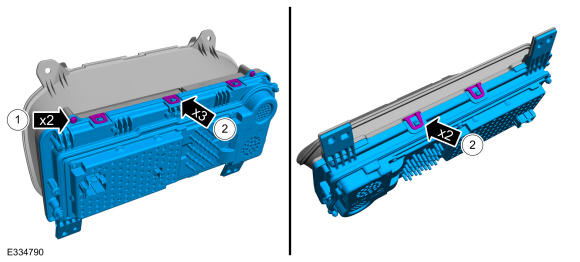

    1. Remove the screws.
    2. Release the tabs and remove the IPC.
GFD560577Courtesy of FORD MOTOR COMPANY
