Instrument Panel Cluster (IPC) Lens: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

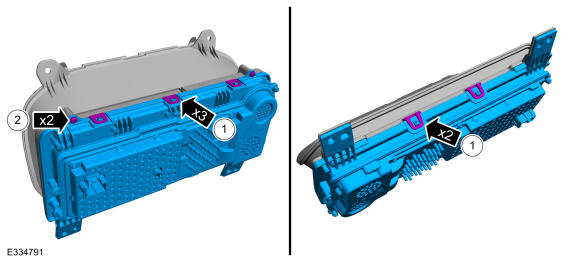

    1. Position the IPC lens and engage the locking tabs.
    2. Install the screws.

      Torque: 10 lb.in (1.1 Nm)

    GFD560578Courtesy of FORD MOTOR COMPANY
  2. Install the IPC. Refer to: Instrument Panel Cluster (IPC) .
