System Diagram: Notes

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

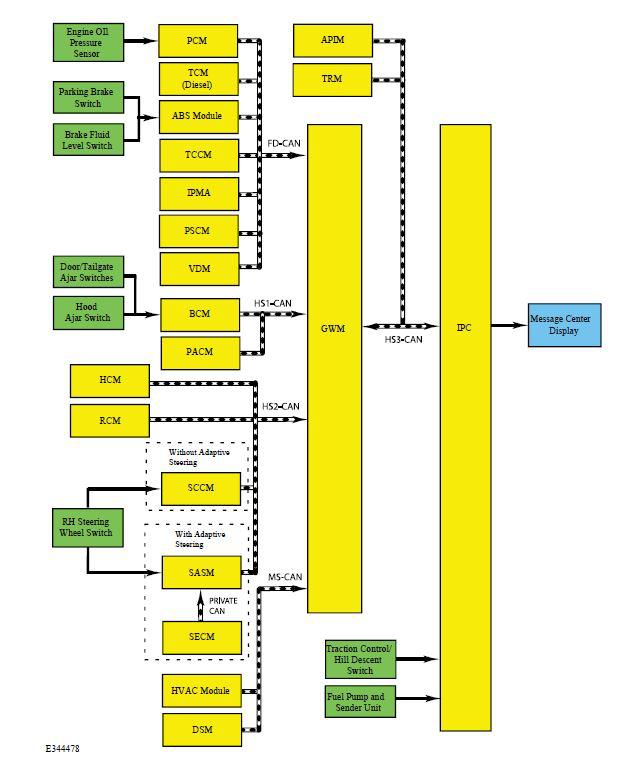

G00598648Courtesy of FORD MOTOR CO.

Message Center
