Mid-Level IPC, 8-Inch Display
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Mid-Level IPC
NOTE:

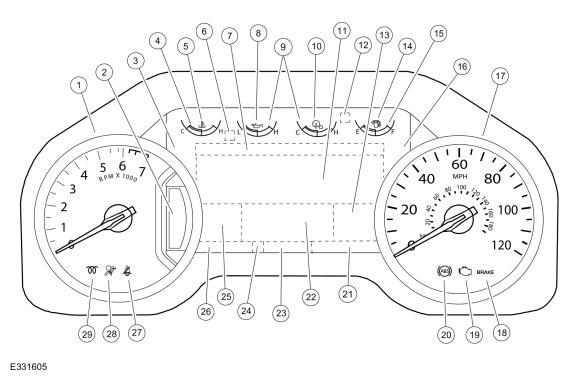

The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Gear selection display |
| 3 | Compass display Rotating Reconfigurable Telltales (RTTs): LH turn RTT indicator Auto regeneration off (diesel) BLIS off Charging system Door ajar Engineering test (ET) mode Hazard - stop safey now (HEV) Hood ajar Hill descent ready Low engine oil pressure (when engine oil pressure gauge is not selected to display) Low washer fluid Powertrain malfunction (wrench) Power tailgate ajar Seatbelt (front and rear) Service interval (wrench) TPMS Water in fuel (diesel) |
| 4 | Engine temperature gauge (gas or diesel) Motor temperature gauge (HEV) |
| 5 | Engine over-temperature warning RTT indicator (gas or diesel) Motor over-temperature RTT indicator (HEV) |
| 6 | Forward collision warning RTT indicator |
| 7 | Message center menu/information display |
| 8 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 9 | Reconfigurable virtual gauges Engine oil pressure Transmission temperature Turbo boost Diesel Exhaust Fluid (DEF) level (diesel) |
| 10 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 11 | Information-on-demand display |
| 12 | Stability-traction control (sliding car icon) RTT indicator |
| 13 | Cruise control/adaptive cruise control set speed display Electric park brake RTT indicator Overspeed warning (Gulf Cooperative Countries [GCC]) RTT indicator Speed sign display |
| 14 | Low fuel RTT indicator |
| 15 | Fuel gauge |
| 16 | Outside air temperature display RH turn RTT indicator Electronic locking differenctial (eLocker) RTT indicator Four wheel drive RTT indicator (2H, 4H, 4L, 4A) Stability-traction control disabled (sliding car OFF icon) RTT indicator |
| 17 | Speedometer |
| 18 | Brake warning RTT indicator |
| 19 | MIL |
| 20 | ABSRTT indicator |
| 21 | DTE display |
| 22 | Driver assistance display Adaptive cruise control display Cruise control/adaptive cruise control RTT indicator Lane centering aid display Lane keeping system display Trail control RTT indicator |
| 23 | PRNDM display |
| 24 | Drive mode RTT indicator Eco Sport Tow Haul Slippery Trail or Mut/Ruts (4WD only) Deep Snow/Sand (4WD only) Rock Crawl (4WD only) |
| 25 | Navigation display Reconfigurable Telltales (RTTs): Active front steering Auto high beam Auto hold Auto stop-start Front fog lamp High beam Lane keeping system Lane centering aid Lights on Ready to drive (HEV) Rear fog lamp (China) |
| 26 | Odometer display |
| 27 | Seatbelt warning RTT indicator |
| 28 | Airbag warning RTT indicator |
| 29 | Wait to start RTT indicator (diesel) |
