High-Level IPC, 12-Inch Display
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Mid-Level IPC
NOTE:

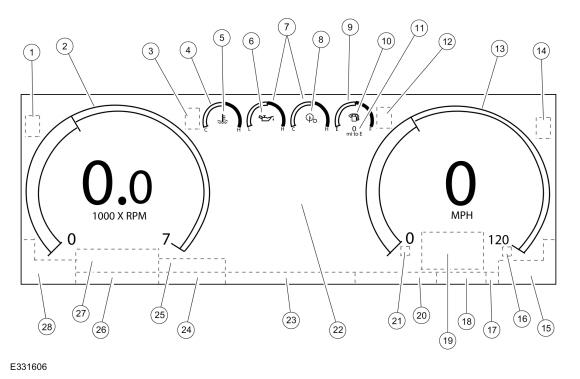

The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | MIL |
| 2 | Virtual speedometer |
| 3 | LH turn RTT indicator Engine over-temperature warning RTT indicator (when temperature gauge is not selected to display) |
| 4 | Engine temperature gauge (gas or diesel) Motor temperature gauge (HEV) |
| 5 | Engine over-temperature warning RTT indicator (gas or diesel, when temperature gauge is selected to display) Motor over-temperature warning RTT indicator (HEV, when temperature gauge is selected to display) |
| 6 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 7 | Reconfigurable virtual gauges Diesel Exhaust Fluid (DEF) level (diesel) Engine oil pressure Transmission temperature Turbo boost |
| 8 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 9 | Virtual fuel gauge |
| 10 | Low fuel level warning RTT indicator (when fuel gauge is selected) |
| 11 | DTE display |
| 12 | RH turn RTT indicator Low engine oil pressure warning RTT indicator (when engine oil pressue gauge is not selected to display) Low fuel level warning RTT indicator (when fuel gauge is not selected to display) |
| 13 | Virtual tachometer |
| 14 | Diesel Exhaust Fluid (DEF) level RTT indicator (diesel) Wait to start RTT indicator (diesel) |
| 15 | Rotating Reconfigurable Telltales (RTTs) Airbag Auto regeneration control (diesel) BLIS off Charging system Door ajar Engineering test (ET) mode Hazard - stop safely now (HEV) Hill descent ready Hood ajar Low washer fluid Powertrain malfunction (wrench) Power tailgate ajar Ready to drive (HEV) Service interval (wrench) TPMS Water in fuel (diesel) |
| 16 | Overspeed warning (Gulf Cooperative Countries [GCC]) RTT indicator |
| 17 | Seatbelt warning RTT indicator |
| 18 | Odometer display |
| 19 | Driver assistance display (displays when driver assist is turned on) Adaptive cruise control display Highway assist display Lane keeping system display Lane centering aid display |
| 20 | Compass display Auto stop-start RTT indicator Lane centering aid RTT indicator Lane keeping system RTT indicator |
| 21 | Cruise control/adaptive cruise control RTT indicator Trail control RTT indicator |
| 22 | Main menu display Information-on-demand display Driver assistance display (when information-on-demand is selected): Adaptive cruise control display Highway assist display Lane centering aid display Lane keeping system display |
| 23 | Audio selection display |
| 24 | Outside air temperature display Forward collision warning RTT indicator |
| 25 | ABSRTT indicator Auto hold RTT indicator |
| 26 | Progressive range select display |
| 27 | PRNDM display Active front steering RTT indicator Brake warning RTT indicator Electric park brake RTT indicator |
| 28 | Rotating Reconfigurable Telltales (RTTs): Auto/adaptive high beam Drive mode (Eco, Sport, Tow Haul, Slippery, Trai or Mud/Ruts (4WD), Deep Snow/Sand (4WD), Rock Crawl (4WD) Four wheel drive (2H, 4H, 4L, 4A) Front fog lamps High beam Lights on Rear fog lamp (China) ELD (eLocker) Stability-traction control (sliding car icon) Stability-traction control disabled (sliding car OFF icon) |
