Base IPC, 4-Inch Display
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Base IPC
NOTE:

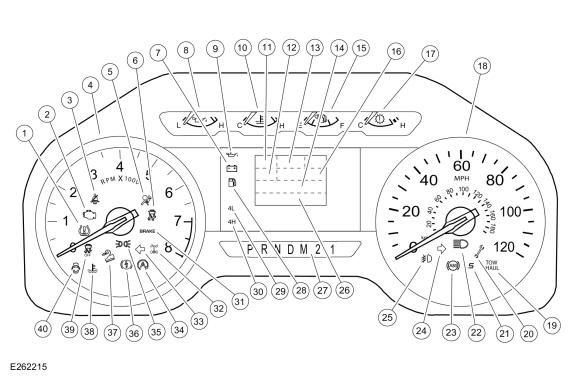

The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | TPMS indicator |
| 2 | MIL |
| 3 | Seatbelt warning indicator |
| 4 | Tachometer |
| 5 | Airbag warning indicator |
| 6 | Stability-traction control indicator (sliding car icon) |
| 7 | Charging system warning indicator |
| 8 | Engine oil pressure gauge |
| 9 | Low oil pressure warning indicator |
| 10 | Engine temperature gauge |
| 11 | SelectShift® display |
| 12 | Cruise control RTT |
| 13 | Compass |
| 14 | Trip computer display area (may also use the cruise control display area as needed) |
| 15 | Fuel gauge |
| 16 | Cruise control and set speed display area (may also use the trip computer and odometer display areas as needed) |
| 17 | Transmission temperature gauge |
| 18 | Speedometer |
| 19 | Tow haul indicator |
| 20 | Powertrain malfunction (wrench) indicator |
| 21 | Sport mode indicator |
| 22 | High beam indicator |
| 23 | ABS indicator |
| 24 | RH turn indicator |
| 25 | Front fog lamp indicator |
| 26 | Odometer display area |
| 27 | PRNDL display |
| 28 | Low fuel indicator |
| 29 | 4x4 low indicator |
| 30 | 4x4 high indicator |
| 31 | Brake warning indicator (text, North America [shown], symbol, non-North America) |
| 32 | ELD indicator |
| 33 | LH turn indicator |
| 34 | Auto stop/start indicator |
| 35 | Lights on indicator |
| 36 | Electronic park brake indicator |
| 37 | Hill descent control indicator |
| 38 | Engine over-temperature warning indicator |
| 39 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 40 | Door ajar warning indicator |
