Side Airbag: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to health and safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Remove the front seat. Refer to: Front Seat .

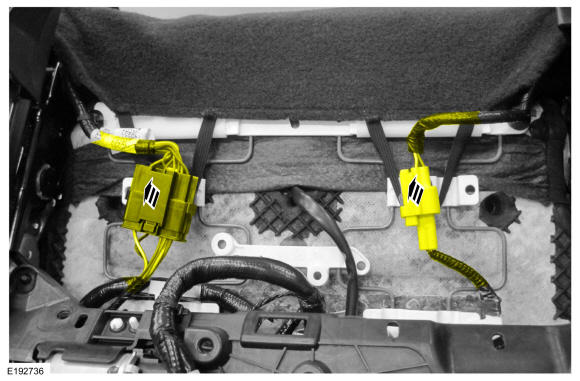

Detach the electrical connector retainers and position the wire harnesses aside.

Courtesy of FORD MOTOR COMPANY
1. Detach the backrest cover straps.
2. If equipped. Route the backrest cover straps through the backrest blower motor snorkel.
3. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY
Release the backrest cover lower J-clips.

Courtesy of FORD MOTOR COMPANY
1. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

  Unzip the backrest cover zipper on each side.
2. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY
NOTE: For installation, note the routing of the backrest blower motor snorkel (if equipped).

Detach the hook-and-loop retainer and position the backrest cover strap aside.

Courtesy of FORD MOTOR COMPANY

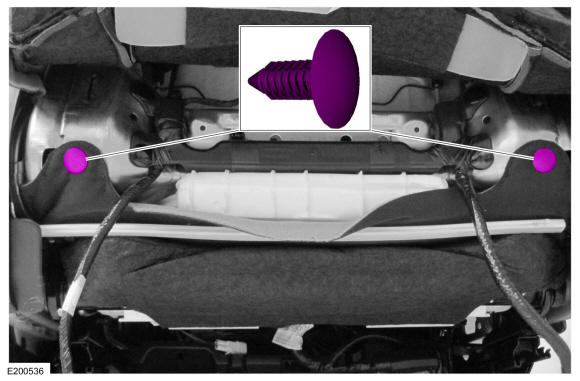

Remove the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

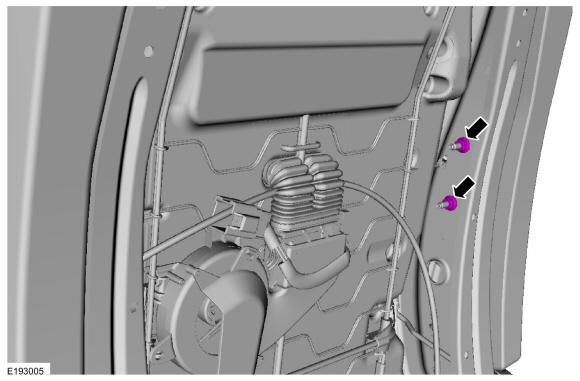

Remove the side airbag nuts.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

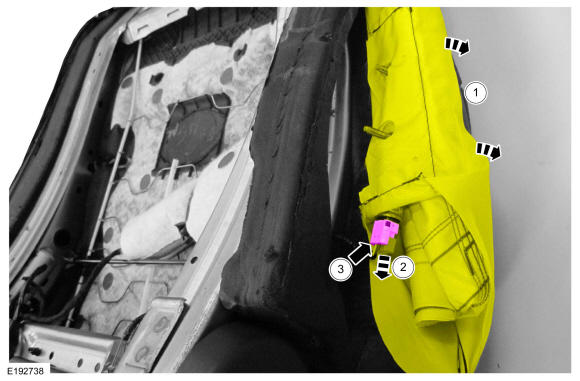

1. Detach the side airbag studs from the backrest frame and position the side airbag out of the backrest foam pad pocket.
2. Disengage the side airbag electrical connector locking wedge.
3. Disconnect the side airbag electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphic for this step in installation.

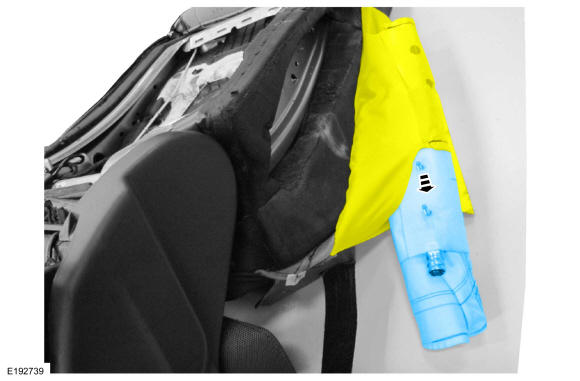

Remove the side airbag from out of the backrest cover deployment chute.

Courtesy of FORD MOTOR COMPANY
