Passenger Airbag Deactivation (PAD) Switch: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
-
WARNING: Before beginning any service procedure, refer to health and safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .

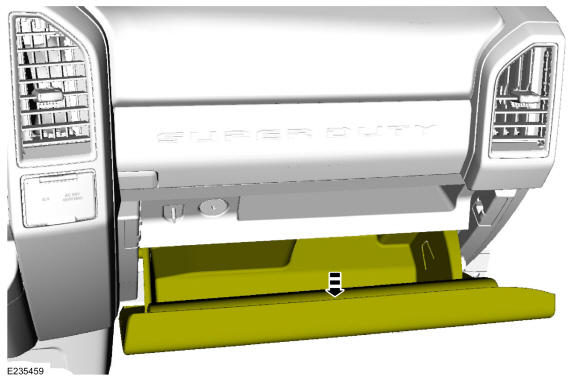

- Open the glove compartment.

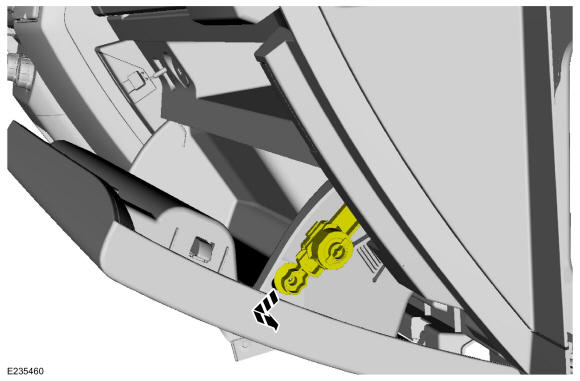

- Position the glove compartment damper retainer to the large opening in the slot and detach it from the glove compartment.

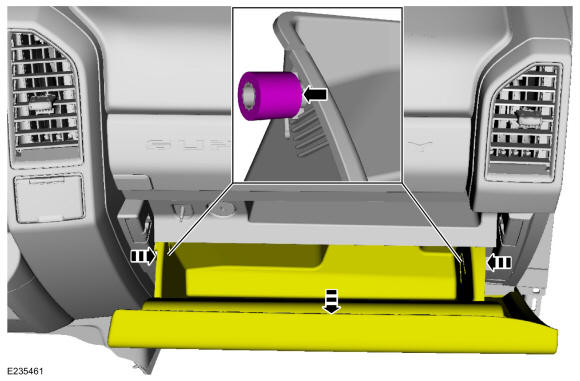

- Push the sides of the glove compartment in and open the glove compartment past its stops.

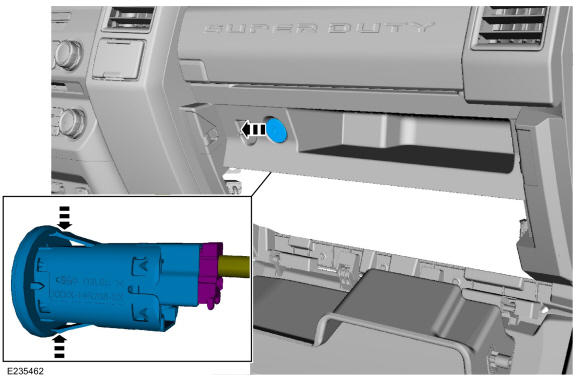

- Release the tabs, push the PAD switch out, disconnect the electrical connector and remove.
