Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

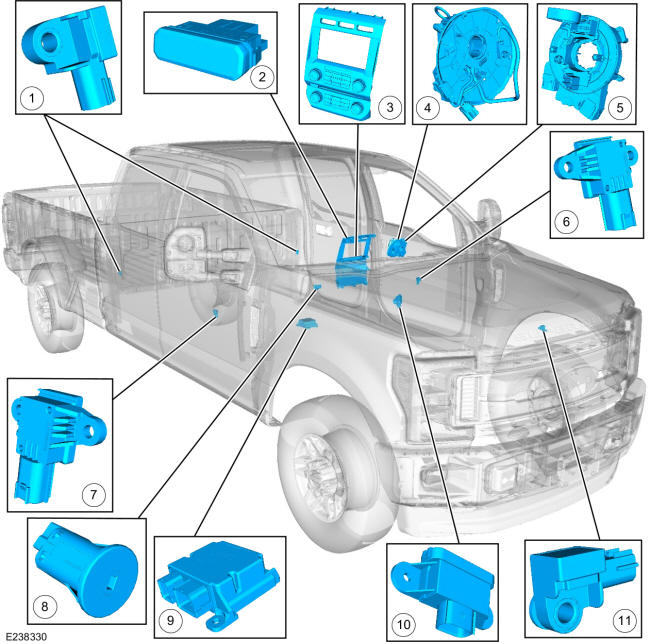

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
LH and RH B-pillar side impact sensors (Super Cab) / LH and RH C-pillar side impact sensors (Crew Cab) (if equipped with side airbags) |
| 2 |
PAD indicator (if equipped with passenger airbag, vehicles without centerstack display) |
| 3 |
FCIM (includes PAD indicator, if equipped with passenger airbag, vehicles with centerstack display only) |
| 4 |
Clockspring (vehicles with Adaptive Steering) |
| 5 |
Clockspring (vehicles without Adaptive Steering) |
| 6 |
Driver front door side impact sensor (if equipped with side airbags) |
| 7 |
Passenger front door side impact sensor (if equipped with side airbags) |
| 8 |
PAD switch (if equipped with passenger airbag) |
| 9 |
RCM |
| 10 |
BECMB |
| 11 |
Front impact severity sensor |

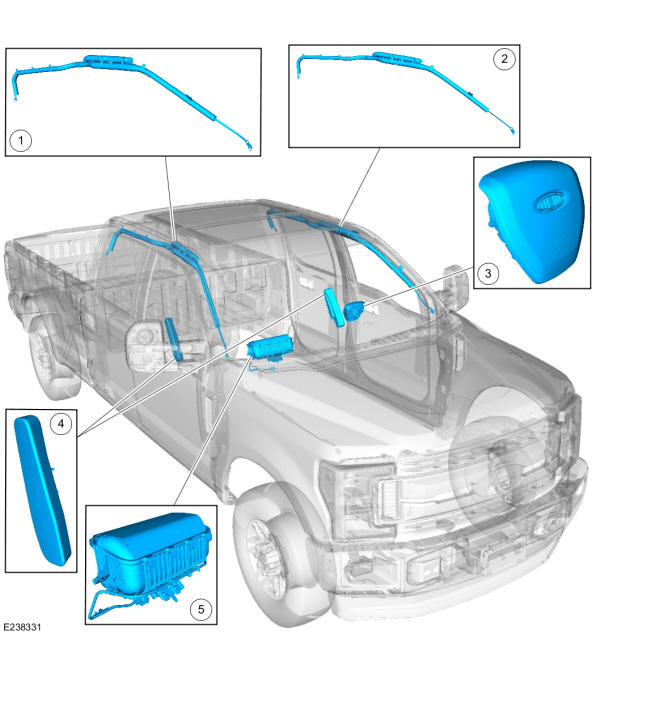

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RH side air curtain (if equipped) |
| 2 |
LH side air curtain (if equipped) |
| 3 |
Driver airbag |
| 4 |
Driver and passenger side airbag (if equipped) |
| 5 |
Passenger airbag (if equipped) |

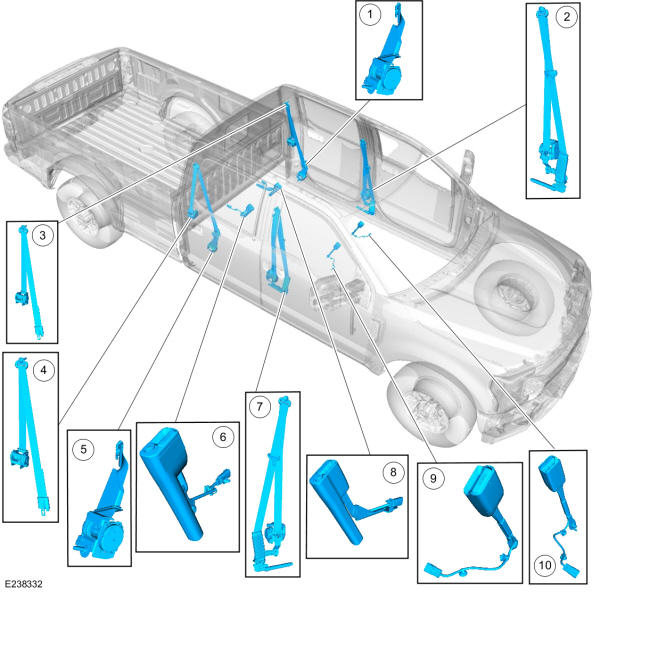

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
LH rear outer seatbelt lower retractor (Crew Cab only, if equipped with inflatable seatbelts) |
| 2 |
Driver seatbelt retractor (includes retractor pretensioner and anchor pretensioner) (Crew Cab shown, other body styles similar) |
| 3 |
LH rear outer seatbelt upper retractor (Crew Cab only, if equipped with inflatable seatbelts) |
| 4 |
RH rear outer seatbelt upper retractor (Crew Cab only, if equipped with inflatable seatbelts) |
| 5 |
RH rear outer seatbelt lower retractor (Crew Cab only, if equipped with inflatable seatbelts) |
| 6 |
RH rear outer seatbelt buckle assembly (Crew Cab only, if equipped with inflatable seatbelts) (includes seatbelt buckle, buckle sensor and seatbelt inflator) |
| 7 |
Front passenger seatbelt retractor (includes retractor pretensioner and anchor pretensioner) (Crew Cab shown, other body styles similar) |
| 8 |
LH rear outer seatbelt buckle assembly (Crew Cab only, if equipped with inflatable seatbelts) (includes seatbelt buckle, buckle sensor and seatbelt inflator) |
| 9 |
Front passenger seatbelt buckle (includes buckle sensor) |
| 10 |
Driver seatbelt buckle (includes buckle sensor) |
