Tailgate Release Switch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate release handle. Refer to: Tailgate Release Handle .
  2. NOTE: This step is only necessary when installing a new component.

    Remove the tailgate release switch.

    1. Release the tailgate release switch retaining tabs.
    2. Remove the tailgate release switch from the tailgate release handle.

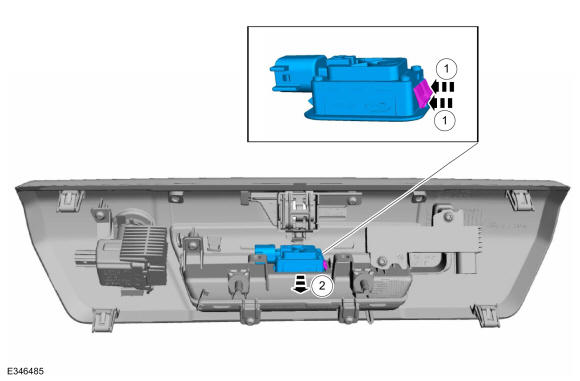

GFD562172Courtesy of FORD MOTOR COMPANY
