Tailgate Latch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH (left-hand) side shown in illustration, RH (right-hand) side similar.

NOTE: Removal steps in this procedure may contain installation details.

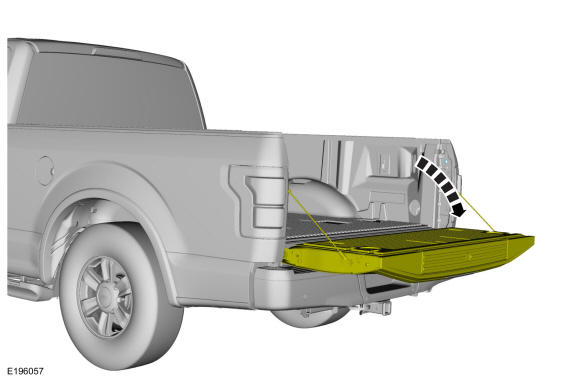

Open the tailgate.

Courtesy of FORD MOTOR COMPANY

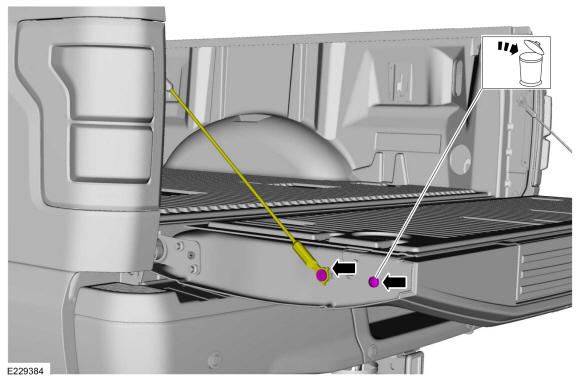

Remove the tailgate bolts and discard upper tailgate bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

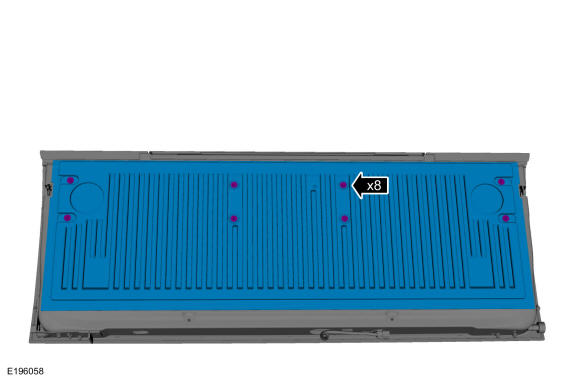

If equipped. Remove the bedliner tailgate cover.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the tailgate access panel bolts and the tailgate access panel.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the workspace tailgate access panel bolts and the workspace tailgate access panel.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

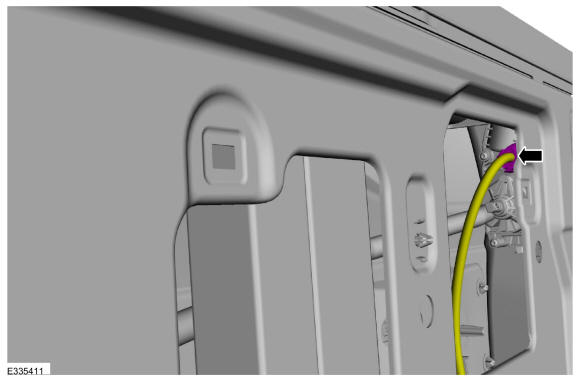

If equipped. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: When installing tailgate latch actuating rods, let them rest in the neutral position in the retaining clips prior to closing to ensure not preload the latch.

Remove the tailgate latch.
1. Disconnect the tailgate latch actuating rod from the tailgate latch control assembly.
2. Position the latch assembly toward the tailgate latch control assembly.
3. Remove the tailgate latch.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: Manual tailgate latch shown in illustration, power tailgate latch similar.

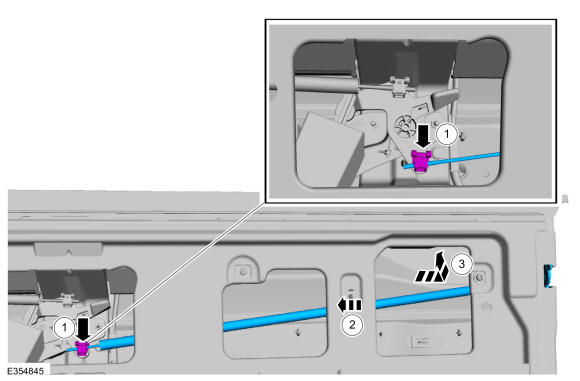

Remove the tailgate latch actuating rod.

Courtesy of FORD MOTOR COMPANY
