Rear Door Upper Latch - SuperCab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Left hand (LH) shown in illustration, right hand (RH) similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCab .
  2. Disconnect the rear door upper latch cable.

    1. Remove the rear door upper latch cable from the cable bracket.
    2. Remove the rear door upper latch cable end from the interior rear door handle.

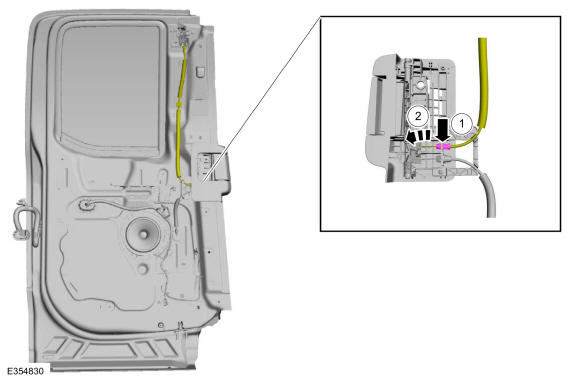

    GFD562142Courtesy of FORD MOTOR COMPANY
  3. Remove the rear door upper latch.

    1. Release the rear door upper latch cable routing clip.
    2. Remove the rear door upper latch bolts.

      Torque

      : 106 lb.in (12 Nm)

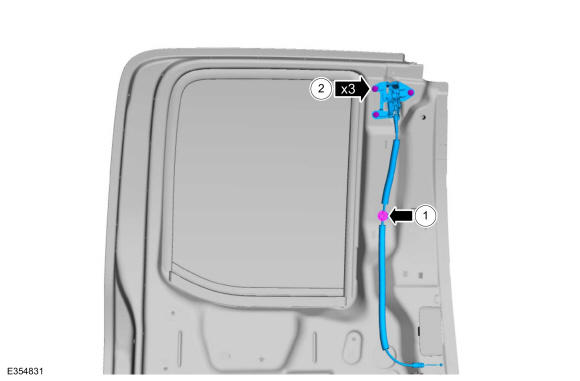

GFD562143Courtesy of FORD MOTOR COMPANY
