Rear Door Lower Latch - SuperCab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left hand (LH) shown in illustration, right hand (RH) similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the interior rear door handle. Refer to: Interior Rear Door Handle - SuperCab .

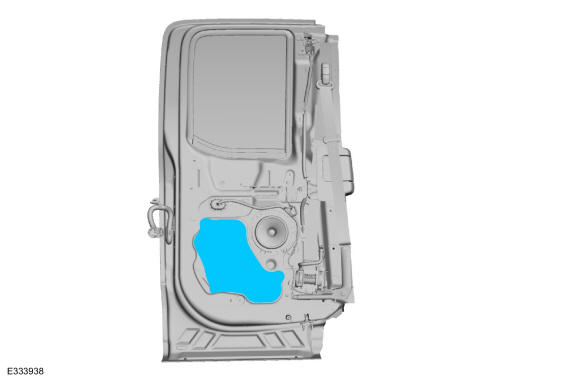

Remove the watershield.

Courtesy of FORD MOTOR COMPANY

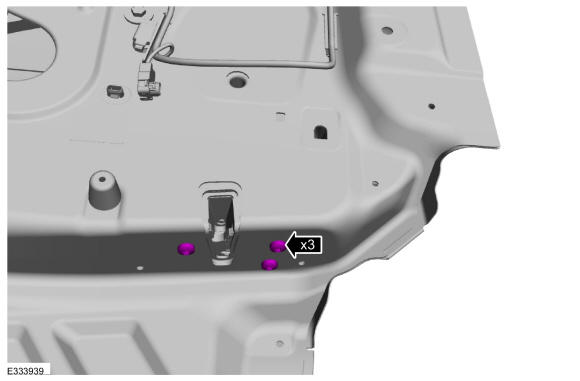

Remove the rear door lower latch bolts.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

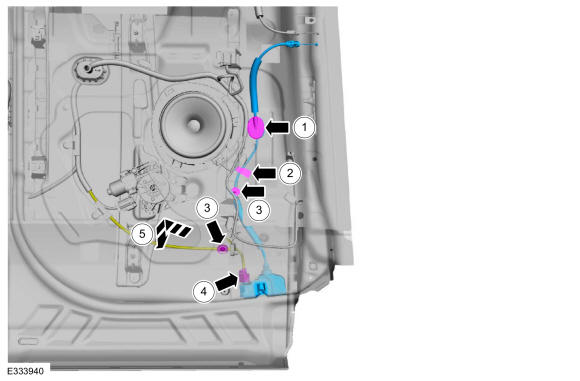

Remove the rear door lower latch.
1. Route the cable and grommet through the inner door.
2. Detach the tape.
3. Release the cable routing clips.
4. Disconnect the rear door ajar switch.
5. Remove the rear door lower latch.

Courtesy of FORD MOTOR COMPANY
