Keyless Entry Rear Antenna: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate release handle. Refer to: Tailgate Release Handle .
  2. NOTE: This step is only necessary when installing a new component.

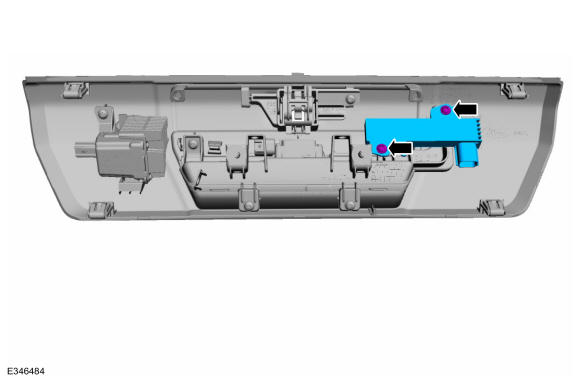

    Remove the screws and the keyless entry rear antenna.

GFD562125Courtesy of FORD MOTOR COMPANY
