Ignition Lock Cylinder: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Non-functional lock cylinder
NOTE:
For non-functional ignition lock cylinders, replace the ignition lock cylinder housing.
- Remove the ignition switch. Refer to: Ignition Switch - Vehicles With: Keyed Ignition
.
Functional lock cylinder
NOTE: Repair individual lock cylinders by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock repair service kit. The lock repair service kit includes a detailed instruction sheet to build the new lock to match the key cut pattern for the vehicle, thus allowing for single point replacement without needing to replace or reprogram other locks or keys. - Release the clips and remove the upper finish trim panel.

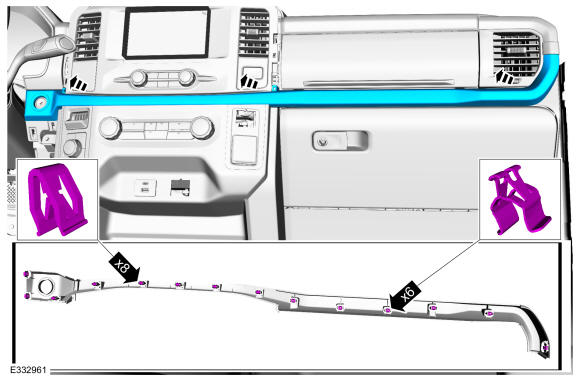

- Release the clips and remove the center finish trim panel.
- Remove the ignition lock cylinder.

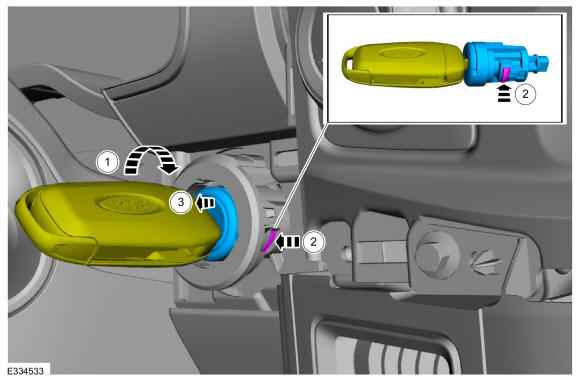

- Insert the ignition key and position the ignition lock cylinder to the ACC position.
- Using a suitable tool, press the ignition lock cylinder release pin through the access hole. Use the General Equipment: Pick Hook
- Pulling the ignition lock cylinder outward, remove the ignition lock cylinder.
