Hood Latch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

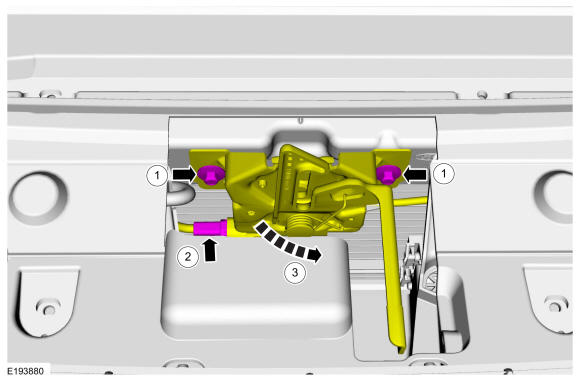

  1. NOTE: If reinstalling the original hood latch, mark around the bolts to aid in alignment during installation.

    Remove the bolts and position aside the hood latch.

    1. Remove the bolts from the hood latch.

      Torque

      : 26 lb.ft (35 Nm)

    2. If equipped. Disconnect the hood ajar switch.
    3. Position aside the hood latch.

    GFD562105Courtesy of FORD MOTOR COMPANY

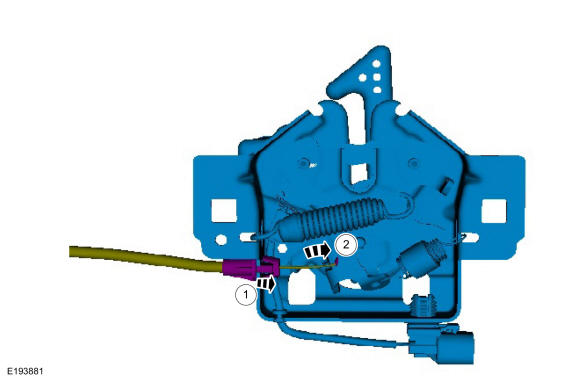

  2. Remove the hood latch.

    1. Detach the cable from the mounting bracket.
    2. Disconnect the hood latch release cable end.

GFD562106Courtesy of FORD MOTOR COMPANY
