Hood Latch Release Handle: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the scuff plate. Refer to: Front Scuff Plate Trim Panel - SuperCab . Refer to: Front Scuff Plate Trim Panel - Regular Cab/SuperCrew .

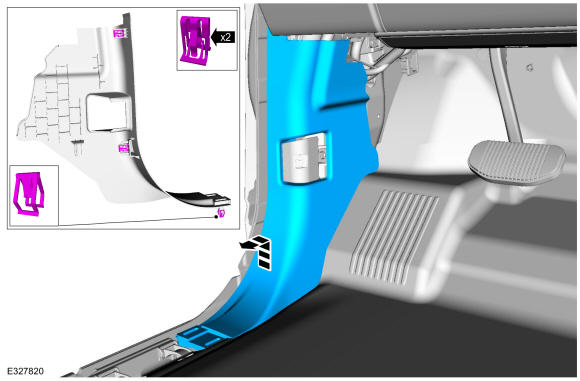

  2. Release the clips and remove the LH lower cowl trim panel.
    GFD562114Courtesy of FORD MOTOR COMPANY

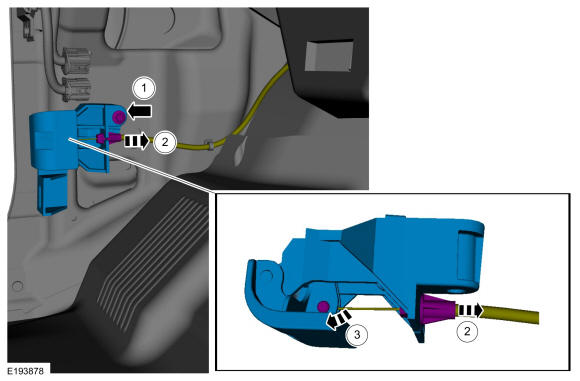

  3. Remove the hood latch release handle.

    1. Remove the bolt from the hood latch release handle.

      Torque

      : 80 lb.in (9 Nm)

    2. Remove the hood latch release cable from the hood latch release handle retaining bracket.
    3. Remove the hood latch release cable end from the hood latch release handle.

GFD562115Courtesy of FORD MOTOR COMPANY
