Hood Latch Release Cable: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood latch. Refer to: Hood Latch .
  2. Remove the air cleaner. Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner .
  3. Remove the left headlamp assembly. Refer to: Headlamp Assembly .
  4. Remove the hood latch release handle. Refer to: Hood Latch Release Handle .

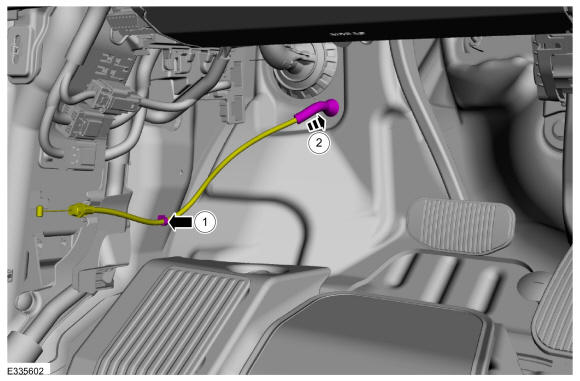

  5. Route the hood latch release cable through the cowl.

    1. Release the cable routing clip.
    2. Route the hood latch release cable through the cowl.

    GFD562108Courtesy of FORD MOTOR COMPANY
  6. Route the hood latch release cable through the engine compartment.
    GFD562109Courtesy of FORD MOTOR COMPANY
  7. Route the hood latch release cable through the engine compartment.
    GFD562110Courtesy of FORD MOTOR COMPANY

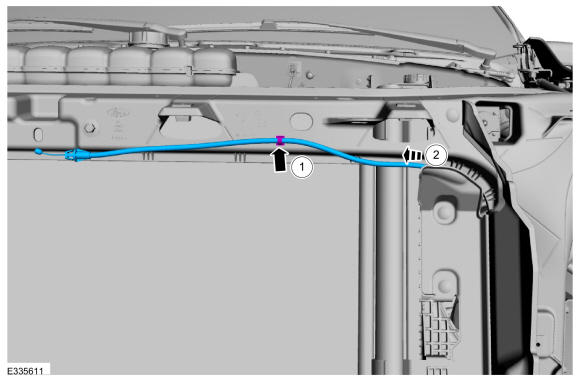

  8. Remove the hood latch release cable.

    1. Detach the cable routing clip from the core support.
    2. Remove the hood latch release cable.

GFD562111Courtesy of FORD MOTOR COMPANY
