Hood Latch Release Cable: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

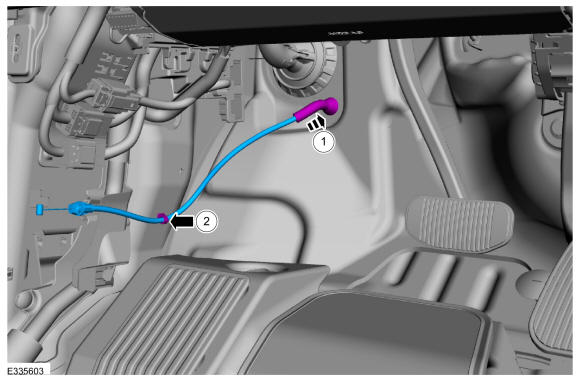

  1. Route the hood latch release cable through the cowl.

    1. Route the hood latch release cable through the cowl.
    2. Attach the cable routing clip.

    GFD562112Courtesy of FORD MOTOR COMPANY

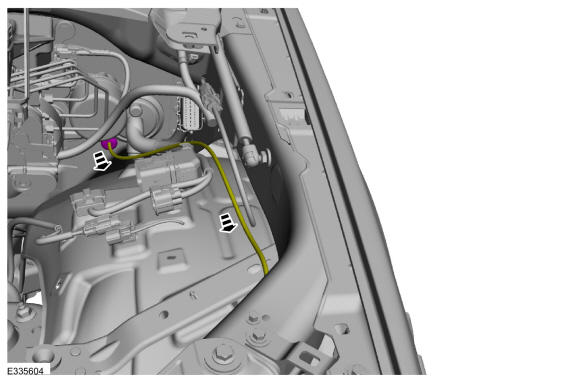

  2. Route the hood latch release cable through the engine compartment.
    GFD562109Courtesy of FORD MOTOR COMPANY

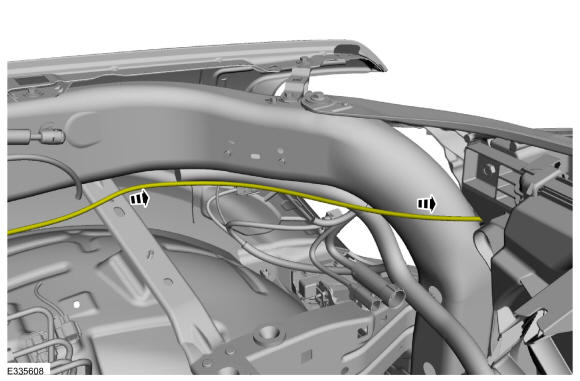

  3. Route the hood latch release cable through the engine compartment.
    GFD562110Courtesy of FORD MOTOR COMPANY

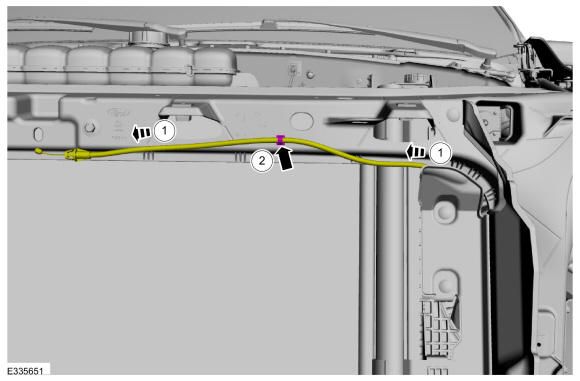

  4. Install the hood latch release cable.

    1. Route the hood latch release cable.
    2. Attach the cable routing clip to the core support.

    GFD562113Courtesy of FORD MOTOR COMPANY
  5. Install the hood latch release handle. Refer to: Hood Latch Release Handle .
  6. Install the left headlamp assembly. Refer to: Headlamp Assembly .
  7. Install the air cleaner. Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner .
  8. Install the hood latch. Refer to: Hood Latch .
