Front Door Latch: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

To install, reverse the removal procedure.
NOTE: This step is only necessary when installing a new component.

NOTE: This step must be done correctly or the exterior door handle will not engage the lever on installation.

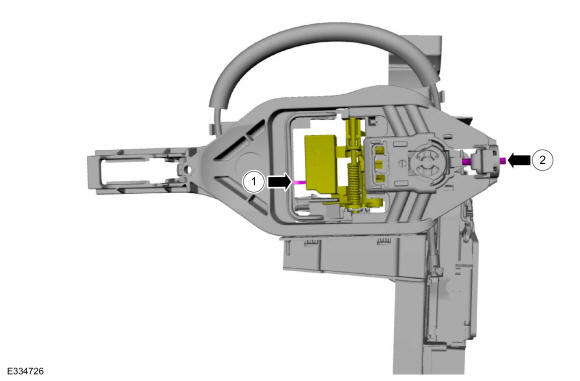

Position the exterior front door handle reinforcement in the service position.
1. While keeping tension on the cable and holding the handle lever in the engaged position against the stop.
2. Turn the release screw until the handle lever is positioned against the stop.
Courtesy of FORD MOTOR COMPANY

Vehicles with power windows
Carry out the power door window initialization. Refer to: Power Door Window Initialization .
