Door Lock Cylinder: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Repair individual door lock cylinders by discarding the inoperative door lock cylinder and building a new door lock cylinder using the appropriate lock repair service kit. The lock repair service kit includes a detailed instruction sheet to build the new lock to match the key cut pattern for the vehicle, thus allowing for single point replacement without needing to replace or reprogram other locks or keys.

Remove the exterior front door handle. Refer to: Exterior Front Door Handle .
Remove the door lock cylinder.

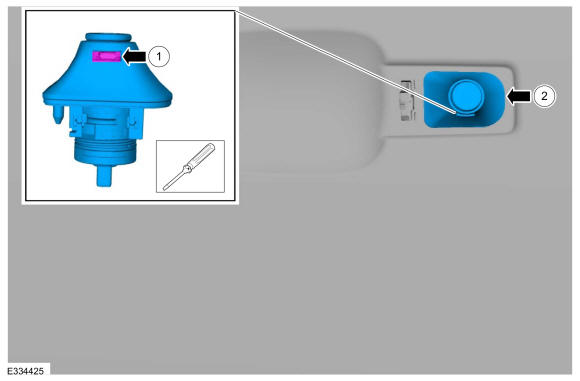

1. Release the door lock cylinder.
  Use the General Equipment: Flat Headed Screw Driver
2. Remove the door lock cylinder.

Courtesy of FORD MOTOR COMPANY
