Auxiliary Switches: Removal

All vehicles

1. NOTE: 12 inch screen shown in illustration, 10 inch screen is similar.

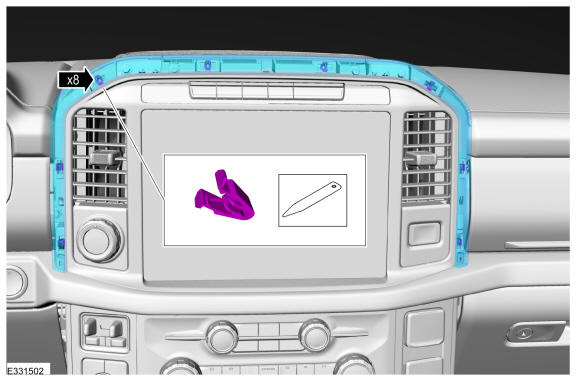

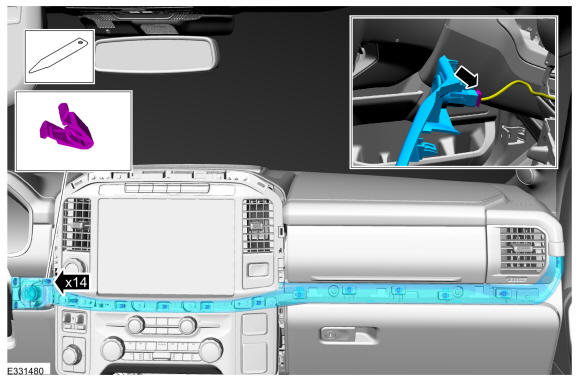

   Release the clips and remove the upper centerstack bezel.

   Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

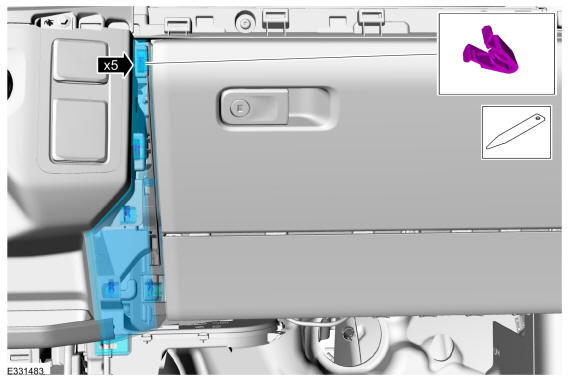

2. Release the clips and remove the RH instrument center trim panel.
   • On vehicles equipped with push button start disconnect the electrical connector.

     Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

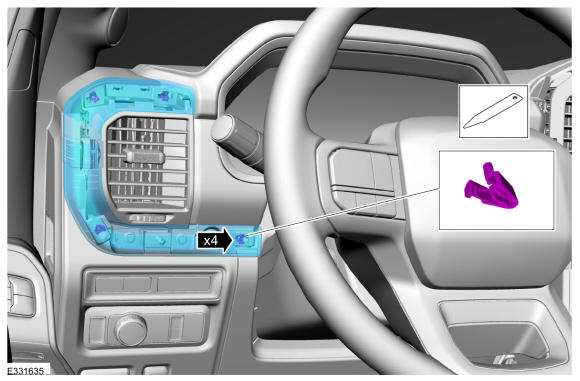

3. Release the clips and remove the LH instrument center trim panel.

   Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

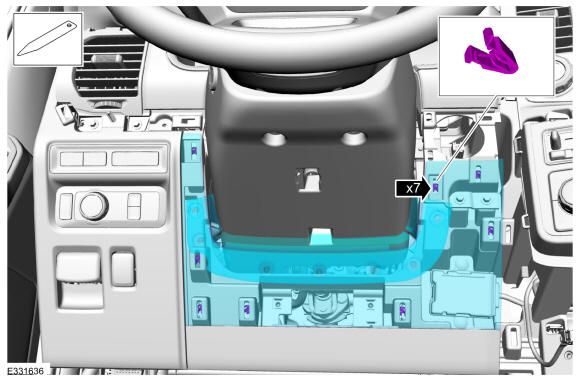

4. Release the clips and remove the lower steering column closeout panel.

   Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

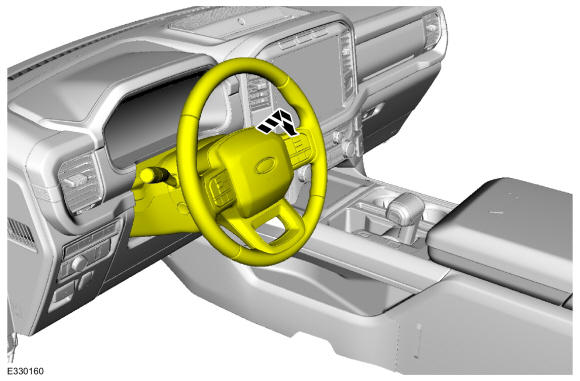

5. Fully extend and lower the steering column.

   Courtesy of FORD MOTOR COMPANY

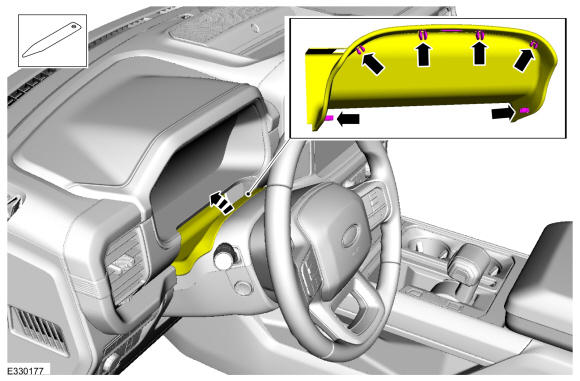

6. Release the tabs and disconnect the gap hider from the upper steering column shroud.

   Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

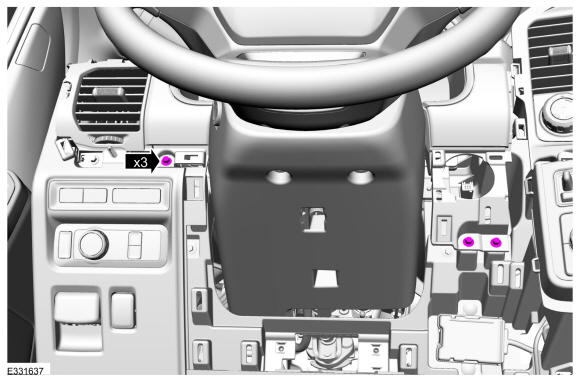

7. Remove the screws.

   Torque

   : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

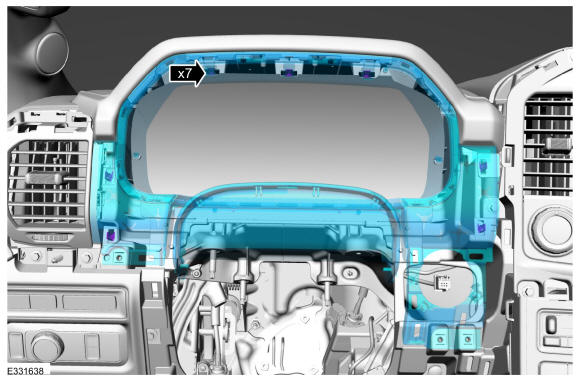

8. Release the clips and remove the instrument cluster panel bezel.

   Courtesy of FORD MOTOR COMPANY

   Vehicles equipped with a floor console

9. Remove the floor console. Refer to: Floor Console .

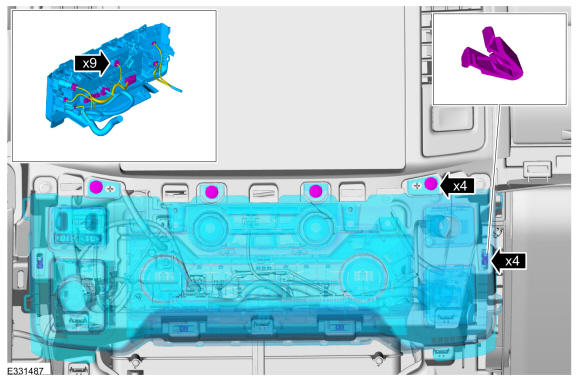

10. Remove the lower centerstack trim panel.
    • Remove the bolts.

      Torque

      : 22 lb.in (2.5 Nm)

    • Release the clips.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles without a floor console

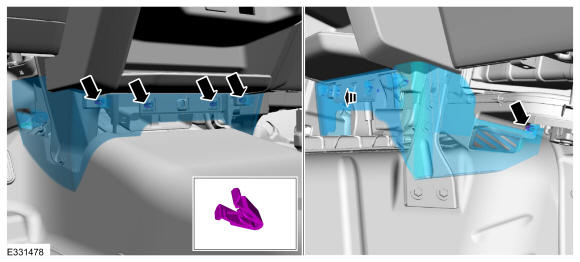

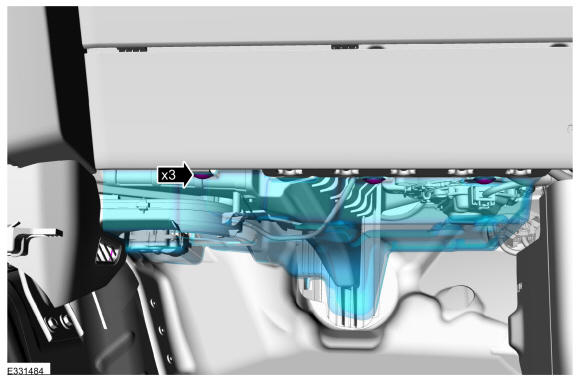

11. Remove the pin-type retainers and the RH lower instrument panel closeout trim panel.

    Courtesy of FORD MOTOR COMPANY

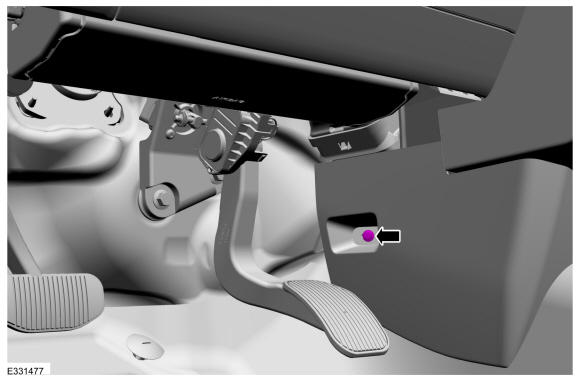

12. Remove the bolt.

    Torque

    : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Release the clips and remove the instrument panel lower trim panel.

    Courtesy of FORD MOTOR COMPANY

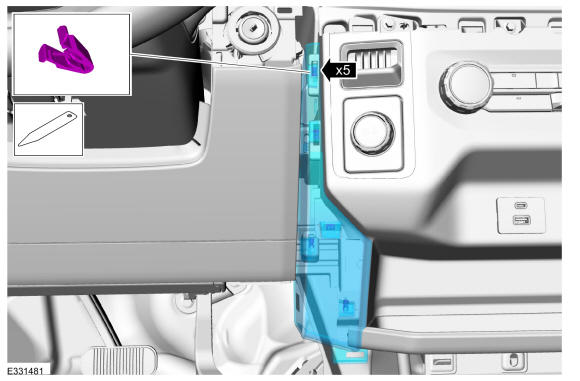

14. Release the clips and remove the LH lower centerstack trim panel.

    Courtesy of FORD MOTOR COMPANY

15. Release the clips and remove the RH lower centerstack trim panel.

    Courtesy of FORD MOTOR COMPANY

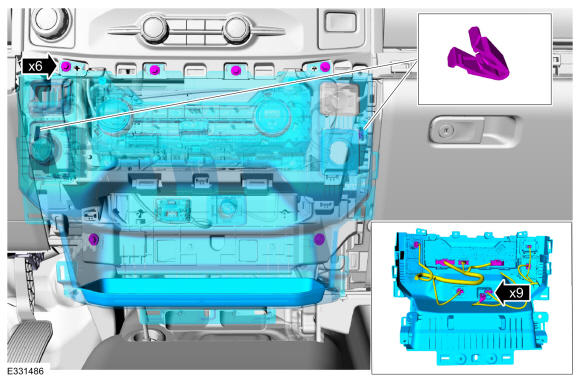

16. Remove the lower centerstack trim panel.
    • Remove the bolts.

      Torque

      : 22 lb.in (2.5 Nm)

    • Release the clips.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with an instrument panel center speaker

17. Remove the instrument panel center speaker. Refer to: Instrument Panel Center Speaker .
18. Remove the screws, release the clips and remove the instrument panel center speaker mounting plate.

    Courtesy of FORD MOTOR COMPANY

    Vehicles not equipped with an instrument panel center speaker

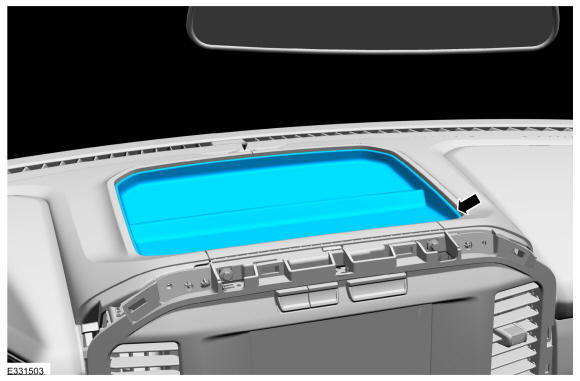

19. Remove the upper instrument panel tray liner.

    Courtesy of FORD MOTOR COMPANY

20. Remove the screws, release the clips and remove the upper instrument panel tray.

    Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with a 10 inch display

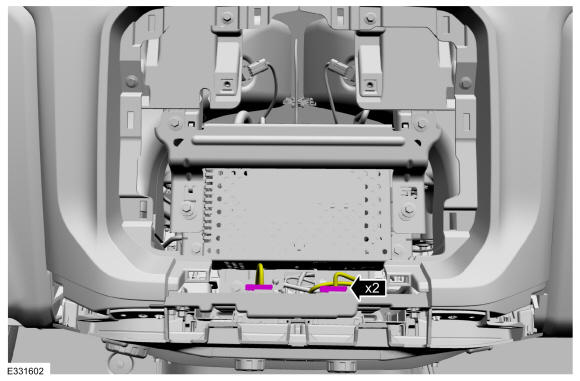

21. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

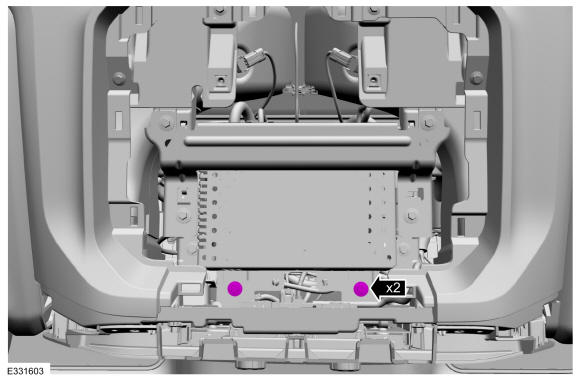

22. Remove the bolts.

    Torque

    : 55 lb.in (6.2 Nm)

    Courtesy of FORD MOTOR COMPANY

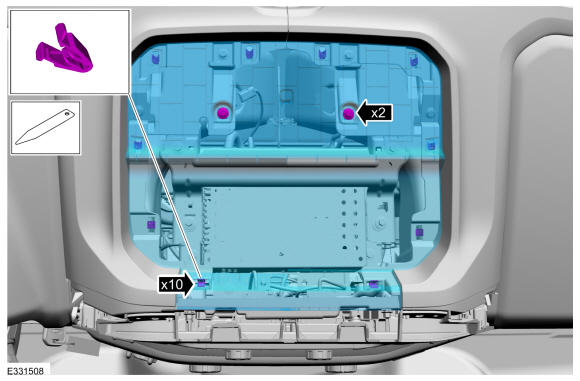

23. Remove the bolts, disconnect the electrical connectors and remove the centerstack trim panel.

    Torque

    : 55 lb.in (6.2 Nm)

    Courtesy of FORD MOTOR COMPANY

24. NOTE: 12 inch screen shown in illustration, 10 inch screen is similar.

    Release the tabs and remove the auxiliary switches.

    Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with a 12 inch display

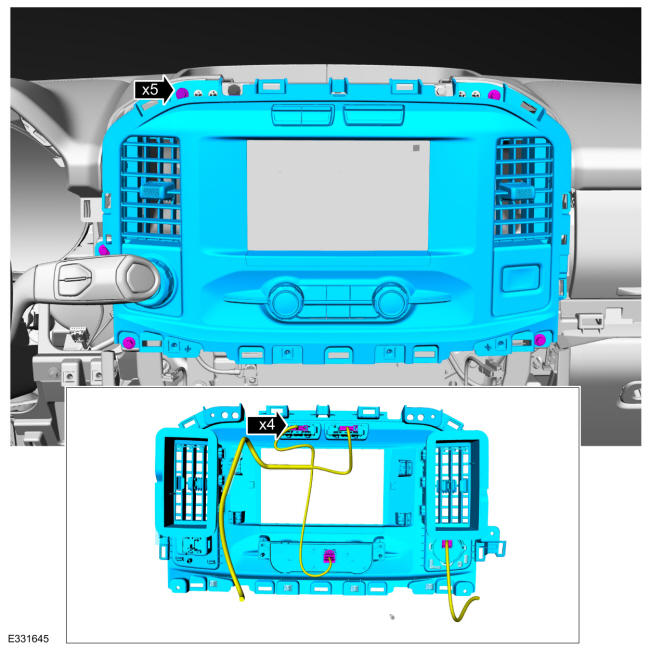

25. Remove the bolts.

    Torque

    : 55 lb.in (6.2 Nm)

    Courtesy of FORD MOTOR COMPANY

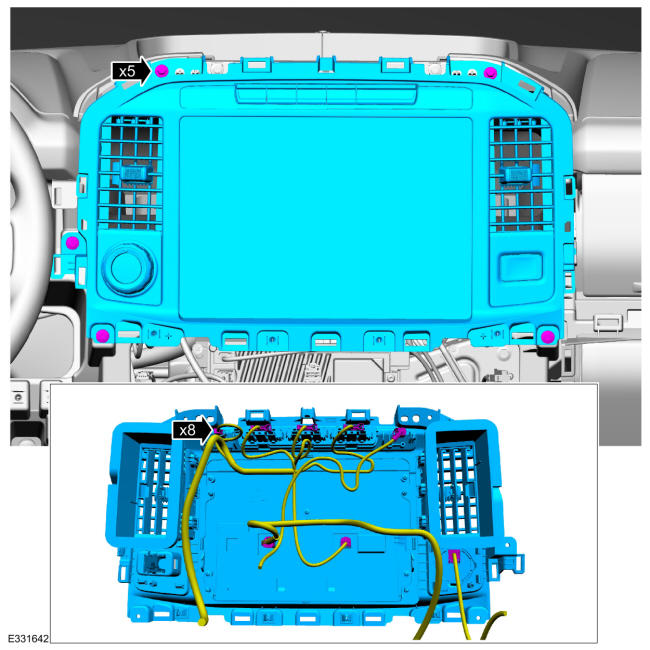

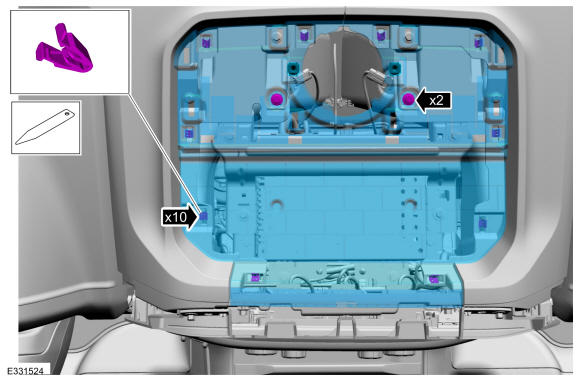

26. Remove the bolts, disconnect the electrical connectors and remove the FDIM and centerstack trim panel as an assembly.

    Torque

    : 55 lb.in (6.2 Nm)

    Courtesy of FORD MOTOR COMPANY

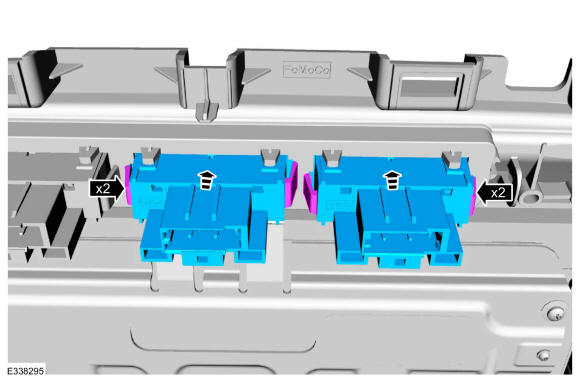

27. Release the tabs and remove the auxiliary switches.
