Front Seat: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.
NOTE:
Driver MCS (Multi-Contour Seat) seat shown, other seats similar.
- Position the seat to access the front seat bolts.
- If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative front center seat horizontal seat track motor. Refer to: Front Seats .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Disconnect the front seat harness electrical connector(s).
- Release the connector position assurance lever and disconnect the electrical connector.
- Disconnect the electrical connector.
- Detach the wiring harness retainer.

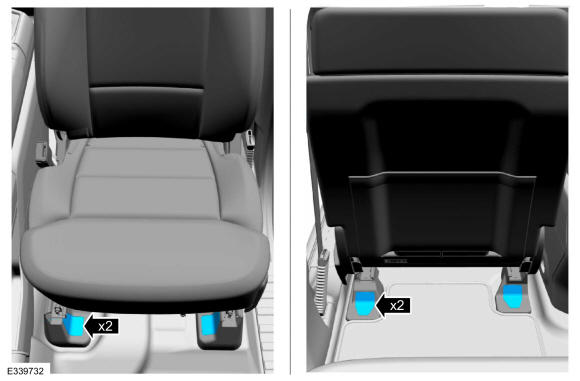

- Remove the front seat bolt covers.
-
NOTE: Follow the unique instructions or graphics for this step in the installation.

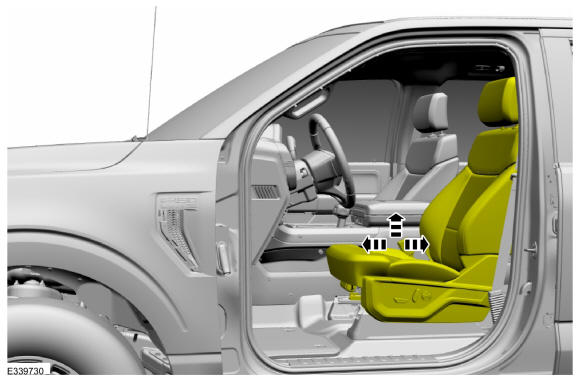

Remove the front seat.

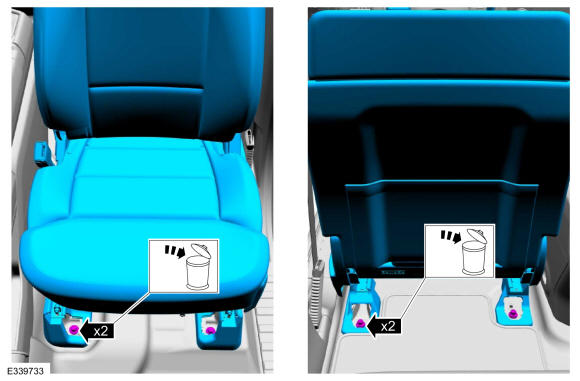

- Remove and discard the bolts.
