Front Seat: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

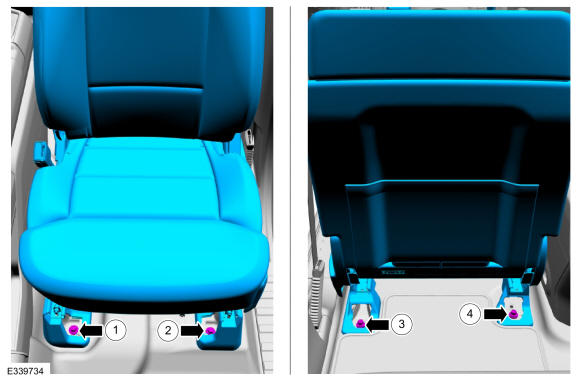

  2. Install the front seat bolts in the following sequence.

    1. Install the front inboard bolt.

      Torque

      : 35 lb.ft (47.5 Nm)

    2. Install the front outboard bolt.

      Torque

      : 35 lb.ft (47.5 Nm)

    3. Install the rear outboard bolt.

      Torque

      : 35 lb.ft (47.5 Nm)

    4. Install the rear inboard bolt.

      Torque

      : 35 lb.ft (47.5 Nm)

    GFD561743Courtesy of FORD MOTOR COMPANY
  3. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
